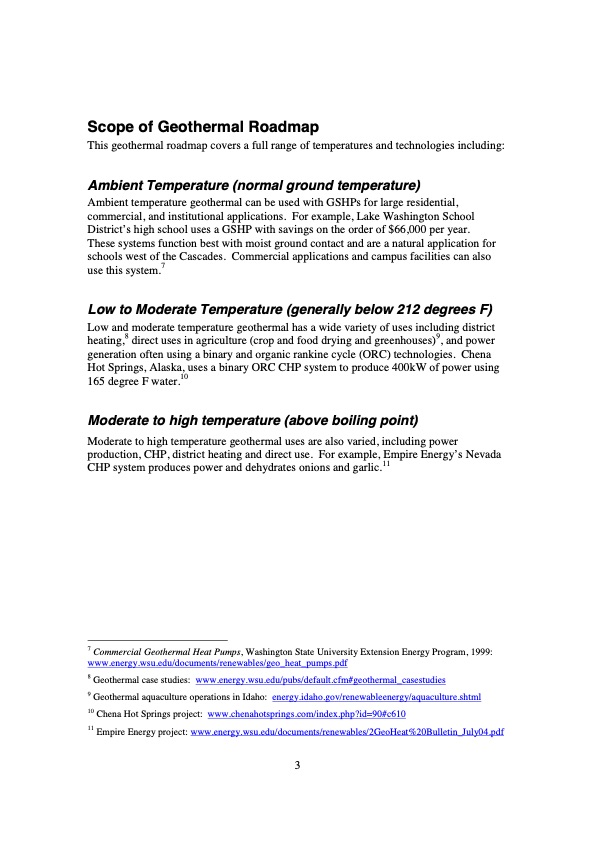

Scope of Geothermal Roadmap This geothermal roadmap covers a full range of temperatures and technologies including: Ambient Temperature (normal ground temperature) Ambient temperature geothermal can be used with GSHPs for large residential, commercial, and institutional applications. For example, Lake Washington School District’s high school uses a GSHP with savings on the order of $66,000 per year. These systems function best with moist ground contact and are a natural application for schools west of the Cascades. Commercial applications and campus facilities can also 7 Low to Moderate Temperature (generally below 212 degrees F) Low and moderate temperature geothermal has a wide variety of uses including district 89 heating, directusesinagriculture(cropandfooddryingandgreenhouses),andpower generation often using a binary and organic rankine cycle (ORC) technologies. Chena Hot Springs, Alaska, uses a binary ORC CHP system to produce 400kW of power using 10 Moderate to high temperature (above boiling point) Moderate to high temperature geothermal uses are also varied, including power production, CHP, district heating and direct use. For example, Empire Energy’s Nevada 11 use this system. 165 degree F water. CHP system produces power and dehydrates onions and garlic. 7 Commercial Geothermal Heat Pumps, Washington State University Extension Energy Program, 1999: www.energy.wsu.edu/documents/renewables/geo_heat_pumps.pdf 8 9 10 11 Geothermal case studies: www.energy.wsu.edu/pubs/default.cfm#geothermal_casestudies Geothermal aquaculture operations in Idaho: energy.idaho.gov/renewableenergy/aquaculture.shtml Chena Hot Springs project: www.chenahotsprings.com/index.php?id=90#c610 Empire Energy project: www.energy.wsu.edu/documents/renewables/2GeoHeat%20Bulletin_July04.pdf 3PDF Image | Washington Geothermal Energy Status
