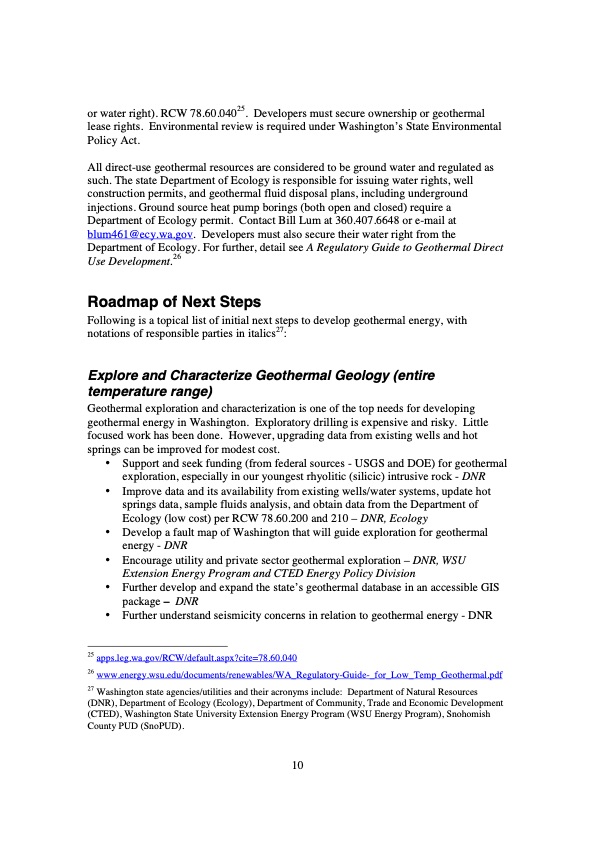

Text from PDF Page: 014
25 or water right). RCW 78.60.040 . Developers must secure ownership or geothermal lease rights. Environmental review is required under Washington’s State Environmental Policy Act. All direct-use geothermal resources are considered to be ground water and regulated as such. The state Department of Ecology is responsible for issuing water rights, well construction permits, and geothermal fluid disposal plans, including underground injections. Ground source heat pump borings (both open and closed) require a Department of Ecology permit. Contact Bill Lum at 360.407.6648 or e-mail at blum461@ecy.wa.gov. Developers must also secure their water right from the Department of Ecology. For further, detail see A Regulatory Guide to Geothermal Direct 26 Roadmap of Next Steps Following is a topical list of initial next steps to develop geothermal energy, with 27 Use Development. notations of responsible parties in italics : Explore and Characterize Geothermal Geology (entire temperature range) Geothermal exploration and characterization is one of the top needs for developing geothermal energy in Washington. Exploratory drilling is expensive and risky. Little focused work has been done. However, upgrading data from existing wells and hot springs can be improved for modest cost. • Support and seek funding (from federal sources - USGS and DOE) for geothermal exploration, especially in our youngest rhyolitic (silicic) intrusive rock - DNR • Improve data and its availability from existing wells/water systems, update hot springs data, sample fluids analysis, and obtain data from the Department of Ecology (low cost) per RCW 78.60.200 and 210 – DNR, Ecology • Develop a fault map of Washington that will guide exploration for geothermal energy - DNR • Encourage utility and private sector geothermal exploration – DNR, WSU Extension Energy Program and CTED Energy Policy Division • Further develop and expand the state’s geothermal database in an accessible GIS package – DNR • Further understand seismicity concerns in relation to geothermal energy - DNR 25 26 27 Washington state agencies/utilities and their acronyms include: Department of Natural Resources (DNR), Department of Ecology (Ecology), Department of Community, Trade and Economic Development (CTED), Washington State University Extension Energy Program (WSU Energy Program), Snohomish County PUD (SnoPUD). apps.leg.wa.gov/RCW/default.aspx?cite=78.60.040 www.energy.wsu.edu/documents/renewables/W A_Regulatory-Guide-_for_Low_Temp_Geothermal.pdf 10PDF Image | Washington Geothermal Energy Status
