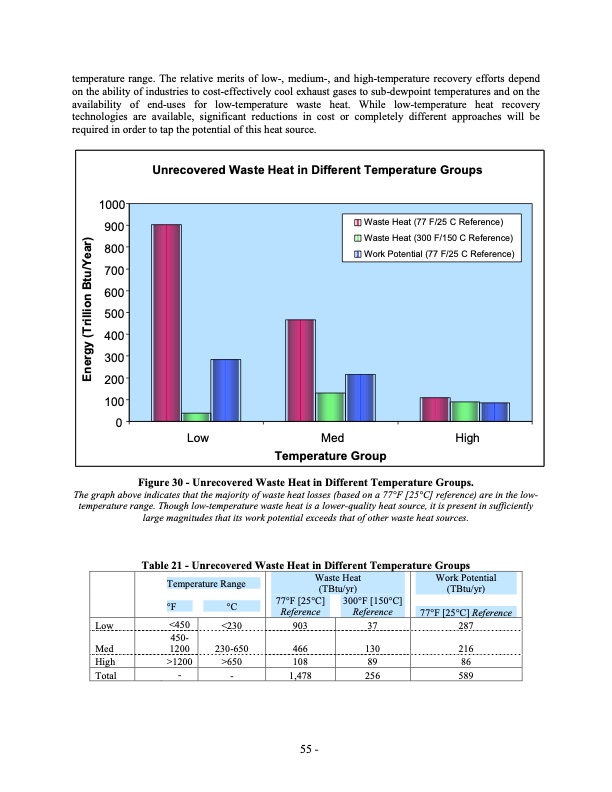

temperature range. The relative merits of low, medium, and hightemperature recovery efforts depend on the ability of industries to costeffectively cool exhaust gases to subdewpoint temperatures and on the availability of enduses for lowtemperature waste heat. While lowtemperature heat recovery technologies are available, significant reductions in cost or completely different approaches will be required in order to tap the potential of this heat source. 1000 900 800 700 600 500 400 300 200 100 0 Unrecovered Waste Heat in Different Temperature Groups Waste Heat (77 F/25 C Reference) Waste Heat (300 F/150 C Reference) Work Potential (77 F/25 C Reference) Low Med High Temperature Group Figure 30 Unrecovered Waste Heat in Different Temperature Groups. The graph above indicates that the majority of waste heat losses (based on a 77°F [25°C] reference) are in the low temperature range. Though lowtemperature waste heat is a lowerquality heat source, it is present in sufficiently large magnitudes that its work potential exceeds that of other waste heat sources. 77°F [25°C] Reference Low Med High Total Table 21 Unrecovered Waste Heat in Different Temperature Groups Temperature Range °F °C <450 <230 903 37 287 450 1200 230650 466 130 216 >1200 >650 108 89 86 1,478 256 589 55 Waste Heat (TBtu/yr) 300°F [150°C] Reference Work Potential (TBtu/yr) 77°F [25°C] Reference Energy (Trillion Btu/Year)PDF Image | Waste Heat to Energy Tech Opportunities in US Industry
