PDF Publication Title:
Text from PDF Page: 017

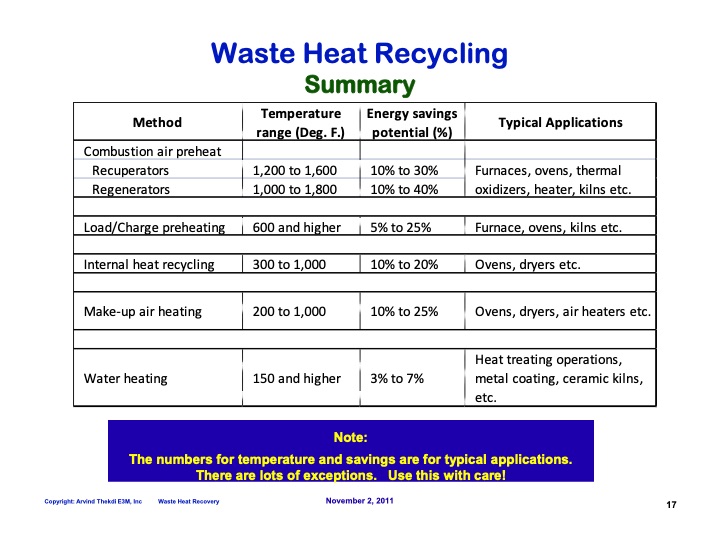

Waste Heat Recycling Summary Method Temperature range (Deg. F.) Energy savings potential (%) Typical Applications Combustion air preheat Recuperators 1,200 to 1,600 10% to 30% Furnaces, ovens, thermal oxidizers, heater, kilns etc. Regenerators 1,000 to 1,800 10% to 40% Load/Charge preheating 600 and higher 5% to 25% Furnace, ovens, kilns etc. Internal heat recycling 300 to 1,000 10% to 20% Ovens, dryers etc. Make-up air heating 200 to 1,000 10% to 25% Ovens, dryers, air heaters etc. Water heating 150 and higher 3% to 7% Heat treating operations, metal coating, ceramic kilns, etc. Note: The numbers for temperature and savings are for typical applications. There are lots of exceptions. Use this with care! Copyright: Arvind Thekdi E3M, Inc Waste Heat Recovery November 2, 2011 17PDF Image | Waste Heat Management
PDF Search Title:
Waste Heat ManagementOriginal File Name Searched:
Waste_Heat_Management_presentation_11.2.11.pdfDIY PDF Search: Google It | Yahoo | Bing
