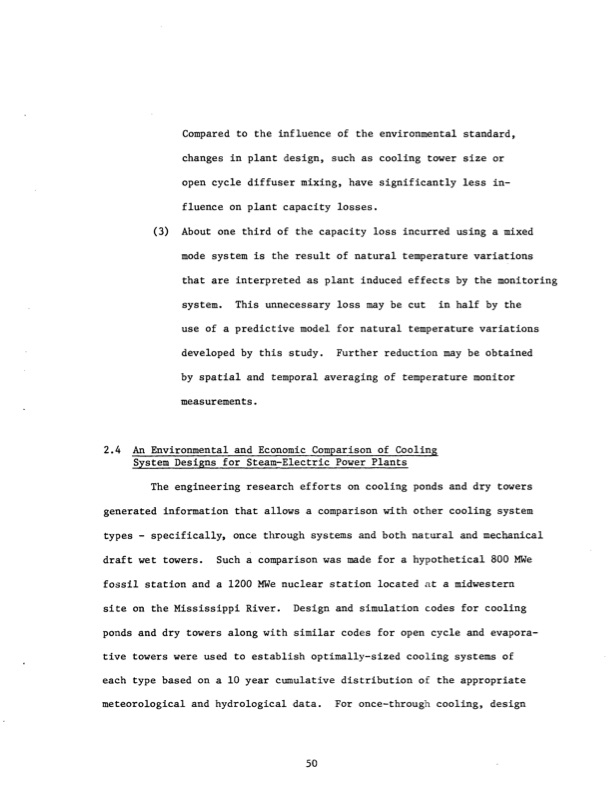

Compared to the influence of the environmental standard, changes in plant design, such as cooling tower size or open cycle diffuser mixing, have significantly less in- fluence on plant capacity losses. (3) About one third of the capacity loss incurred using a mixed mode system is the result of natural temperature variations that are interpreted as plant induced effects by the monitoring system. This unnecessary loss may be cut in half by the use of a predictive model for natural temperature variations developed by this study. Further reduction may be obtained by spatial and temporal averaging of temperature monitor measurements. 2.4 An Environmental and Economic Comparison of Cooling System Designs for Steam-Electric Power Plants The engineering research efforts on cooling ponds and dry towers generated information that allows a comparison with other cooling system types - specifically, once through systems and both natural and mechanical draftwettowers. Suchacomparisonwasmadeforahypothetical800MWe fossil station and a 1200 MWe nuclear station located aft a idwestern site on the Mississippi River. Design and simulation codes for cooling ponds and dry towers along with similar codes for open cycle and evapora- tive towers were used to establish optimally-sized cooling systems of each type based on a 10 year cumulative distribution of the appropriate meteorological and hydrological data. For once-through cooling, design 50PDF Image | WASTE HEAT MANAGEMENT IN THE ELECTRIC POWER INDUSTRY
