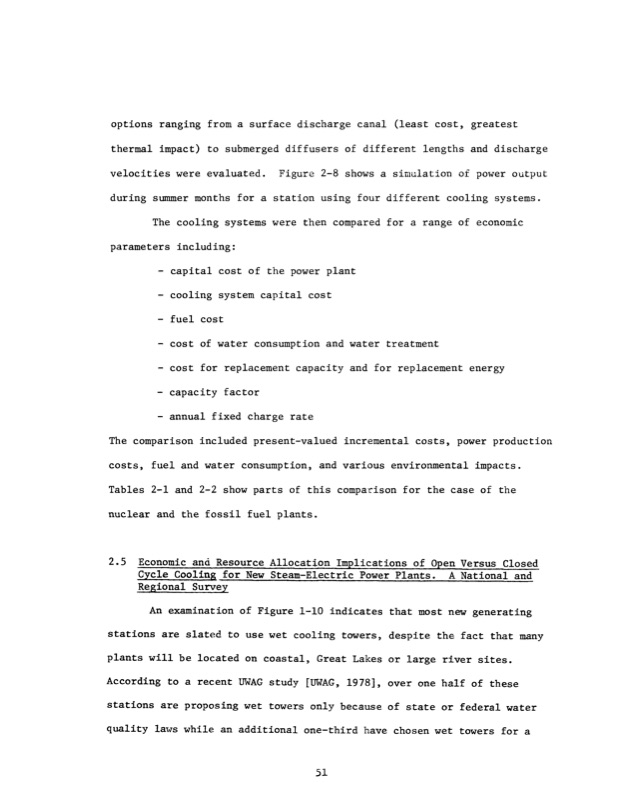

options ranging from a surface discharge canal (least cost, greatest thermal impact) to submerged diffusers of different lengths and discharge velocities were evaluated. Figure 2-8 shows a simulation of power output during summer months for a station using four different cooling systems. The cooling systems were then compared for a range of economic parameters including: - capital cost of the power plant - cooling system capital cost - fuel cost - cost of water consumption and water treatment - cost for replacement capacity and for replacement energy - capacity factor - annual fixed charge rate The comparison included present-valued incremental costs, power production costs, fuel and water consumption, and various environmental impacts. Tables 2-1 and 2-2 show parts of this comparison for the case of the nuclear and the fossil fuel plants. 2.5 Economic and Resource Allocation Implications of Open Versus Closed Cycle Cooling for New Steam-Electric Power Plants. A National and Regional Survey An examination of Figure 1-10 indicates that most new generating stations are slated to use wet cooling towers, despite the fact that many plants will be located on coastal, Great Lakes or large river sites. According to a recent UWAG study [WAG, 1978], over one half of these stations are proposing wet towers only because of state or federal water quality laws while an additional one-third have chosen wet towers for a 51PDF Image | WASTE HEAT MANAGEMENT IN THE ELECTRIC POWER INDUSTRY
