Text from PDF Page: 031

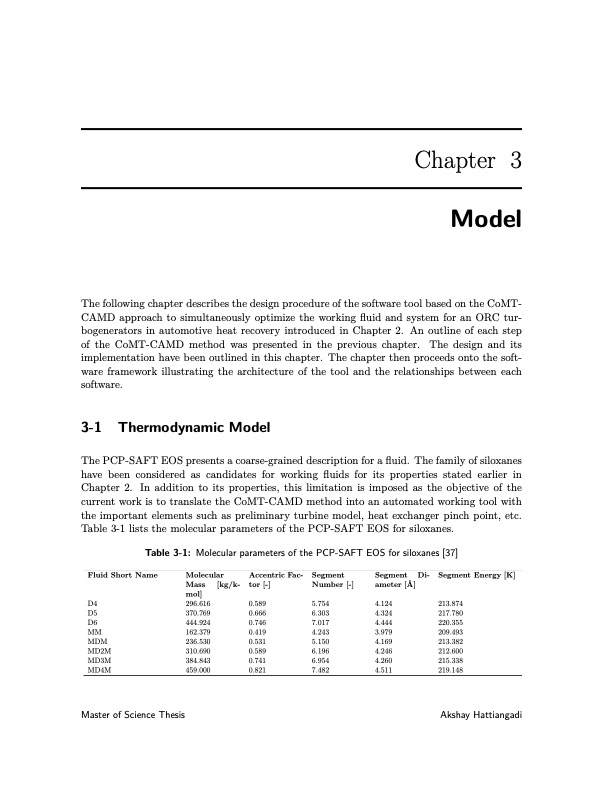

Chapter 3 Model The following chapter describes the design procedure of the software tool based on the CoMT- CAMD approach to simultaneously optimize the working fluid and system for an ORC tur- bogenerators in automotive heat recovery introduced in Chapter 2. An outline of each step of the CoMT-CAMD method was presented in the previous chapter. The design and its implementation have been outlined in this chapter. The chapter then proceeds onto the soft- ware framework illustrating the architecture of the tool and the relationships between each software. 3-1 Thermodynamic Model The PCP-SAFT EOS presents a coarse-grained description for a fluid. The family of siloxanes have been considered as candidates for working fluids for its properties stated earlier in Chapter 2. In addition to its properties, this limitation is imposed as the objective of the current work is to translate the CoMT-CAMD method into an automated working tool with the important elements such as preliminary turbine model, heat exchanger pinch point, etc. Table 3-1 lists the molecular parameters of the PCP-SAFT EOS for siloxanes. Table 3-1: Molecular parameters of the PCP-SAFT EOS for siloxanes [37] Fluid Short Name D4 D5 D6 MM MDM MD2M MD3M MD4M Master of Science Thesis Molecular Mass [kg/k- mol] 296.616 370.769 444.924 162.379 236.530 310.690 384.843 459.000 Accentric Fac- tor [-] 0.589 0.666 0.746 0.419 0.531 0.589 0.741 0.821 Segment Number [-] 5.754 6.303 7.017 4.243 5.150 6.196 6.954 7.482 Segment Di- ameter [Å] 4.124 4.324 4.444 3.979 4.169 4.246 4.260 4.511 Segment Energy [K] 213.874 217.780 220.355 209.493 213.382 212.600 215.338 219.148 Akshay HattiangadiPDF Image | Working Fluid Design for Organic Rankine Cycle
