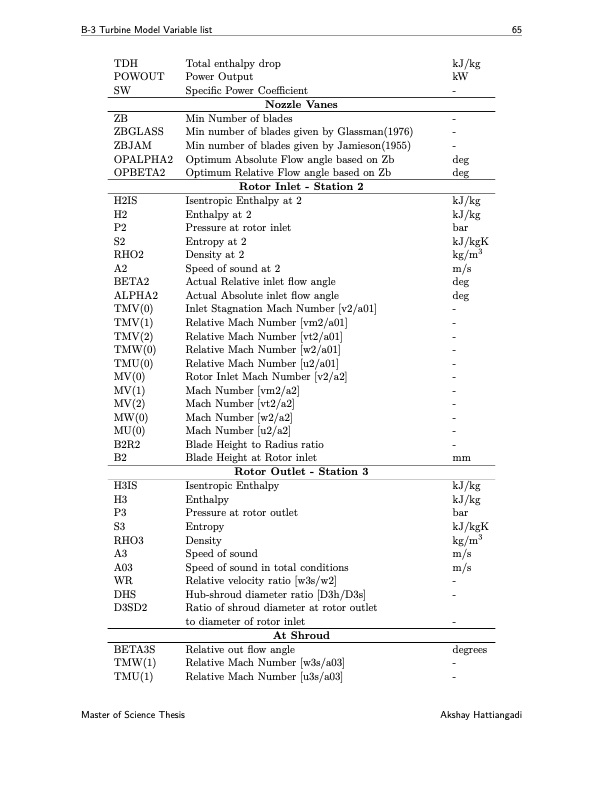

B-3 Turbine Model Variable list 65 TDH POWOUT SW ZB ZBGLASS ZBJAM OPALPHA2 OPBETA2 H2IS H2 P2 S2 RHO2 A2 BETA2 ALPHA2 TMV(0) TMV(1) TMV(2) TMW(0) TMU(0) MV(0) MV(1) MV(2) MW(0) MU(0) B2R2 B2 H3IS H3 P3 S3 RHO3 A3 A03 WR DHS D3SD2 BETA3S TMW(1) TMU(1) Master of Science Thesis Total enthalpy drop Power Output Specific Power Coefficient Nozzle Vanes Min Number of blades Min number of blades given by Glassman(1976) Min number of blades given by Jamieson(1955) Optimum Absolute Flow angle based on Zb Optimum Relative Flow angle based on Zb Rotor Inlet - Station 2 Isentropic Enthalpy at 2 Enthalpy at 2 Pressure at rotor inlet Entropy at 2 Density at 2 Speed of sound at 2 Actual Relative inlet flow angle Actual Absolute inlet flow angle Inlet Stagnation Mach Number [v2/a01] Relative Mach Number [vm2/a01] Relative Mach Number [vt2/a01] Relative Mach Number [w2/a01] Relative Mach Number [u2/a01] Rotor Inlet Mach Number [v2/a2] Mach Number [vm2/a2] Mach Number [vt2/a2] Mach Number [w2/a2] Mach Number [u2/a2] Blade Height to Radius ratio Blade Height at Rotor inlet Rotor Outlet - Station 3 Isentropic Enthalpy Enthalpy Pressure at rotor outlet Entropy Density Speed of sound Speed of sound in total conditions Relative velocity ratio [w3s/w2] Hub-shroud diameter ratio [D3h/D3s] Ratio of shroud diameter at rotor outlet to diameter of rotor inlet At Shroud Relative out flow angle Relative Mach Number [w3s/a03] Relative Mach Number [u3s/a03] kJ/kg kW - - - - deg deg kJ/kg kJ/kg bar kJ/kgK kg/m3 m/s deg deg - - - - - - - - - - - mm kJ/kg kJ/kg bar kJ/kgK kg/m3 m/s m/s - - - degrees - - Akshay HattiangadiPDF Image | Working Fluid Design for Organic Rankine Cycle
