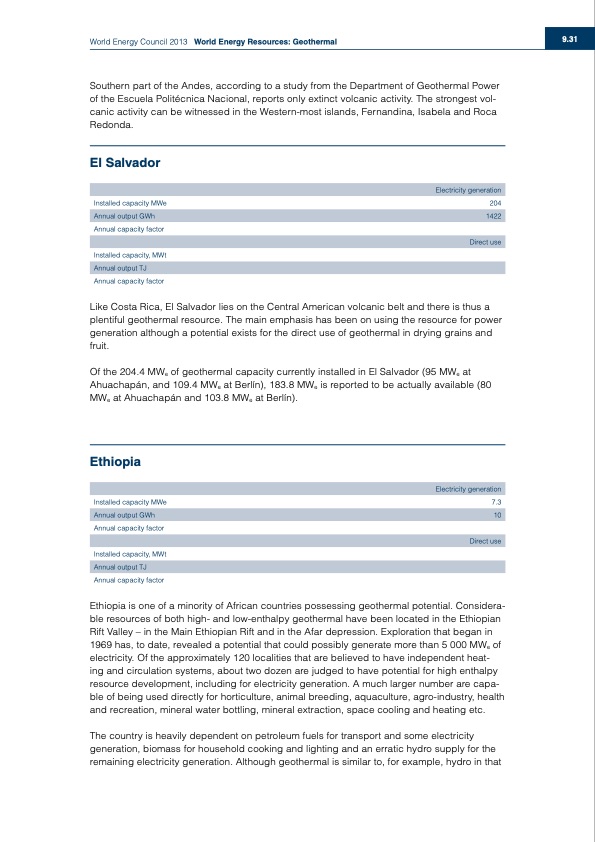

World Energy Council 2013 World Energy Resources: Geothermal Southern part of the Andes, according to a study from the Department of Geothermal Power of the Escuela Politécnica Nacional, reports only extinct volcanic activity. The strongest vol- canic activity can be witnessed in the Western-most islands, Fernandina, Isabela and Roca Redonda. El Salvador Electricity generation Installed capacity MWe 204 Annual output GWh 1422 Annual capacity factor Direct use Installed capacity, MWt Annual output TJ Annual capacity factor Like Costa Rica, El Salvador lies on the Central American volcanic belt and there is thus a plentiful geothermal resource. The main emphasis has been on using the resource for power generation although a potential exists for the direct use of geothermal in drying grains and fruit. Of the 204.4 MWe of geothermal capacity currently installed in El Salvador (95 MWe at Ahuachapán, and 109.4 MWe at Berlín), 183.8 MWe is reported to be actually available (80 MWe at Ahuachapán and 103.8 MWe at Berlín). Ethiopia Electricity generation Installed capacity MWe 7.3 Annual output GWh 10 Annual capacity factor Direct use Installed capacity, MWt Annual output TJ Annual capacity factor Ethiopia is one of a minority of African countries possessing geothermal potential. Considera- ble resources of both high- and low-enthalpy geothermal have been located in the Ethiopian Rift Valley – in the Main Ethiopian Rift and in the Afar depression. Exploration that began in 1969 has, to date, revealed a potential that could possibly generate more than 5 000 MWe of electricity. Of the approximately 120 localities that are believed to have independent heat- ing and circulation systems, about two dozen are judged to have potential for high enthalpy resource development, including for electricity generation. A much larger number are capa- ble of being used directly for horticulture, animal breeding, aquaculture, agro-industry, health and recreation, mineral water bottling, mineral extraction, space cooling and heating etc. The country is heavily dependent on petroleum fuels for transport and some electricity generation, biomass for household cooking and lighting and an erratic hydro supply for the remaining electricity generation. Although geothermal is similar to, for example, hydro in that 9.31PDF Image | World Energy Council 2013 World Energy Resources Geothermal
