PDF Publication Title:

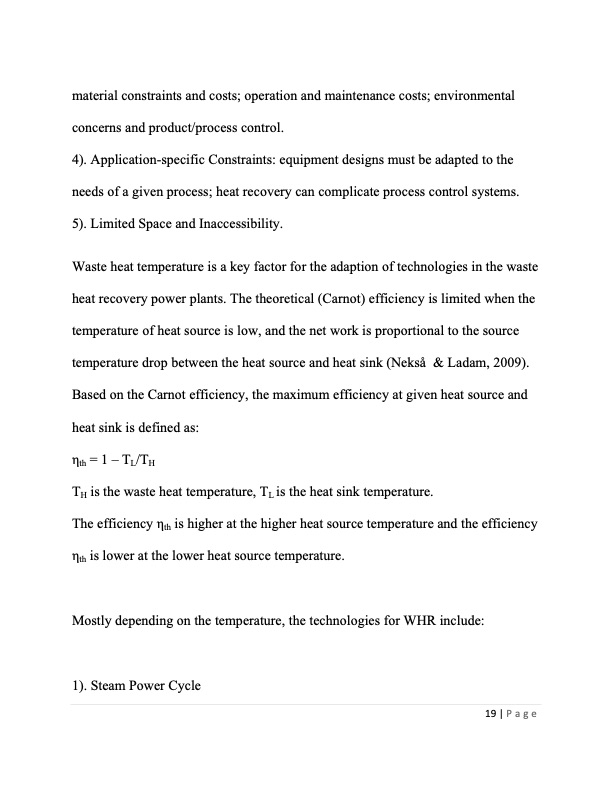

Text from PDF Page: 021
material constraints and costs; operation and maintenance costs; environmental concerns and product/process control. 4). Application-specific Constraints: equipment designs must be adapted to the needs of a given process; heat recovery can complicate process control systems. 5). Limited Space and Inaccessibility. Waste heat temperature is a key factor for the adaption of technologies in the waste heat recovery power plants. The theoretical (Carnot) efficiency is limited when the temperature of heat source is low, and the net work is proportional to the source temperature drop between the heat source and heat sink (Nekså & Ladam, 2009). Based on the Carnot efficiency, the maximum efficiency at given heat source and heat sink is defined as: ηth = 1 – TL/TH TH is the waste heat temperature, TL is the heat sink temperature. The efficiency ηth is higher at the higher heat source temperature and the efficiency ηth is lower at the lower heat source temperature. Mostly depending on the temperature, the technologies for WHR include: 1). Steam Power Cycle 19 | P a g ePDF Image | ZEOLITES DAY NIGHT DESORPTION CYCLE ADSORPTION CYCLE
PDF Search Title:
ZEOLITES DAY NIGHT DESORPTION CYCLE ADSORPTION CYCLEOriginal File Name Searched:
masteroppgave.pdfDIY PDF Search: Google It | Yahoo | Bing
