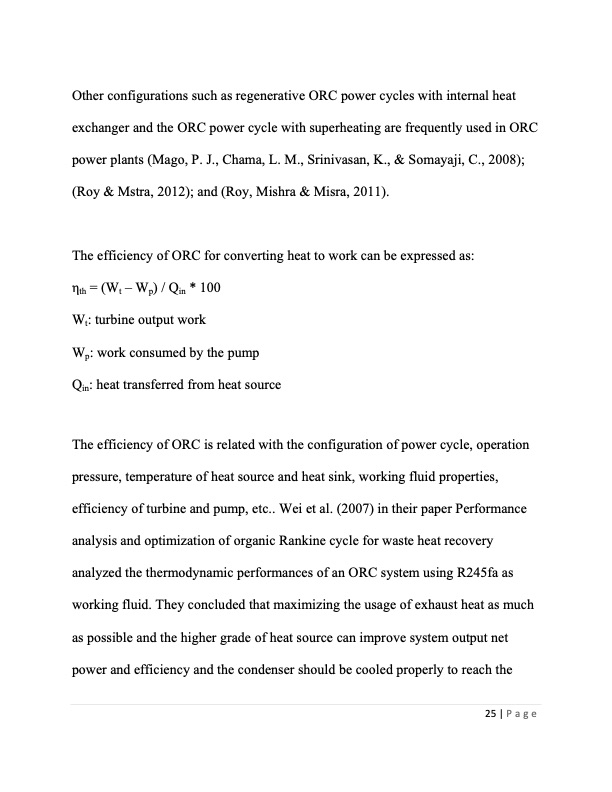

Other configurations such as regenerative ORC power cycles with internal heat exchanger and the ORC power cycle with superheating are frequently used in ORC power plants (Mago, P. J., Chama, L. M., Srinivasan, K., & Somayaji, C., 2008); (Roy & Mstra, 2012); and (Roy, Mishra & Misra, 2011). The efficiency of ORC for converting heat to work can be expressed as: ηth =(Wt –Wp)/Qin *100 Wt: turbine output work Wp: work consumed by the pump Qin: heat transferred from heat source The efficiency of ORC is related with the configuration of power cycle, operation pressure, temperature of heat source and heat sink, working fluid properties, efficiency of turbine and pump, etc.. Wei et al. (2007) in their paper Performance analysis and optimization of organic Rankine cycle for waste heat recovery analyzed the thermodynamic performances of an ORC system using R245fa as working fluid. They concluded that maximizing the usage of exhaust heat as much as possible and the higher grade of heat source can improve system output net power and efficiency and the condenser should be cooled properly to reach the 25 | P a g ePDF Image | ZEOLITES DAY NIGHT DESORPTION CYCLE ADSORPTION CYCLE
