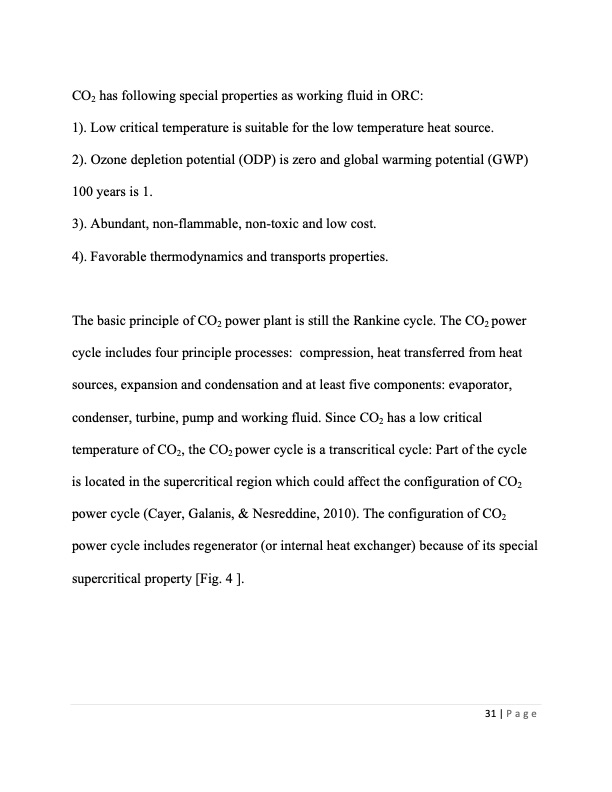

CO2 has following special properties as working fluid in ORC: 1). Low critical temperature is suitable for the low temperature heat source. 2). Ozone depletion potential (ODP) is zero and global warming potential (GWP) 100 years is 1. 3). Abundant, non-flammable, non-toxic and low cost. 4). Favorable thermodynamics and transports properties. The basic principle of CO2 power plant is still the Rankine cycle. The CO2 power cycle includes four principle processes: compression, heat transferred from heat sources, expansion and condensation and at least five components: evaporator, condenser, turbine, pump and working fluid. Since CO2 has a low critical temperature of CO2, the CO2 power cycle is a transcritical cycle: Part of the cycle is located in the supercritical region which could affect the configuration of CO2 power cycle (Cayer, Galanis, & Nesreddine, 2010). The configuration of CO2 power cycle includes regenerator (or internal heat exchanger) because of its special supercritical property [Fig. 4 ]. 31 | P a g ePDF Image | ZEOLITES DAY NIGHT DESORPTION CYCLE ADSORPTION CYCLE
