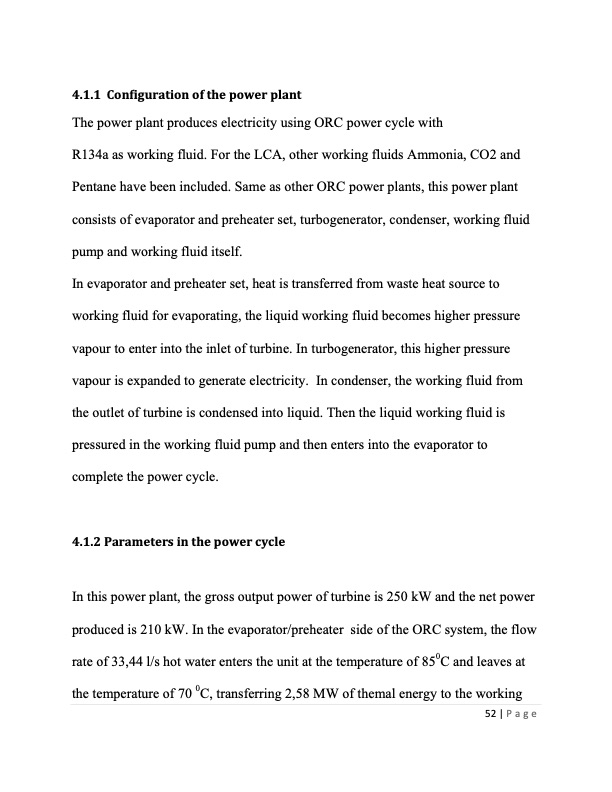

4.1.1 Configuration of the power plant The power plant produces electricity using ORC power cycle with R134a as working fluid. For the LCA, other working fluids Ammonia, CO2 and Pentane have been included. Same as other ORC power plants, this power plant consists of evaporator and preheater set, turbogenerator, condenser, working fluid pump and working fluid itself. In evaporator and preheater set, heat is transferred from waste heat source to working fluid for evaporating, the liquid working fluid becomes higher pressure vapour to enter into the inlet of turbine. In turbogenerator, this higher pressure vapour is expanded to generate electricity. In condenser, the working fluid from the outlet of turbine is condensed into liquid. Then the liquid working fluid is pressured in the working fluid pump and then enters into the evaporator to complete the power cycle. 4.1.2 Parameters in the power cycle In this power plant, the gross output power of turbine is 250 kW and the net power produced is 210 kW. In the evaporator/preheater side of the ORC system, the flow rate of 33,44 l/s hot water enters the unit at the temperature of 850C and leaves at the temperature of 70 0C, transferring 2,58 MW of themal energy to the working 52 | P a g ePDF Image | ZEOLITES DAY NIGHT DESORPTION CYCLE ADSORPTION CYCLE
