Text from PDF Page: 055

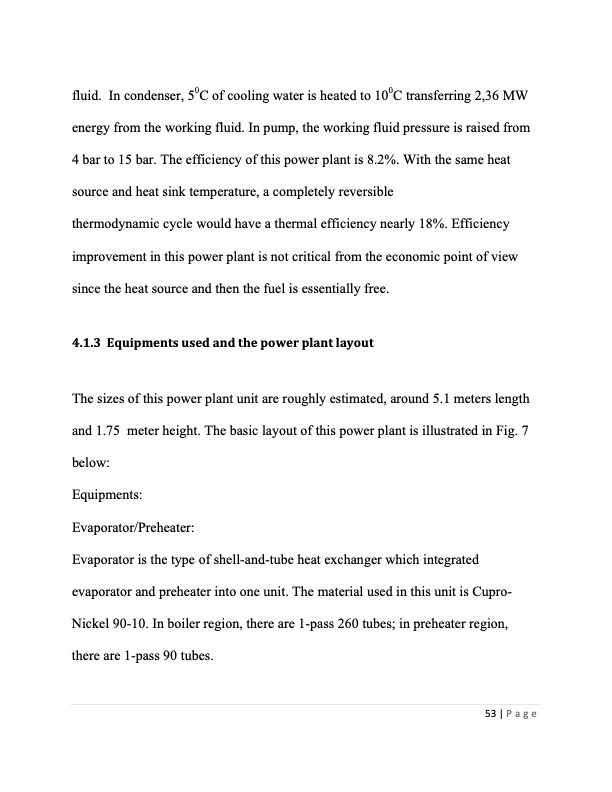

fluid. In condenser, 50C of cooling water is heated to 100C transferring 2,36 MW energy from the working fluid. In pump, the working fluid pressure is raised from 4 bar to 15 bar. The efficiency of this power plant is 8.2%. With the same heat source and heat sink temperature, a completely reversible thermodynamic cycle would have a thermal efficiency nearly 18%. Efficiency improvement in this power plant is not critical from the economic point of view since the heat source and then the fuel is essentially free. 4.1.3 Equipments used and the power plant layout The sizes of this power plant unit are roughly estimated, around 5.1 meters length and 1.75 meter height. The basic layout of this power plant is illustrated in Fig. 7 below: Equipments: Evaporator/Preheater: Evaporator is the type of shell-and-tube heat exchanger which integrated evaporator and preheater into one unit. The material used in this unit is Cupro- Nickel 90-10. In boiler region, there are 1-pass 260 tubes; in preheater region, there are 1-pass 90 tubes. 53 | P a g e
