PDF Publication Title:
Text from PDF Page: 064

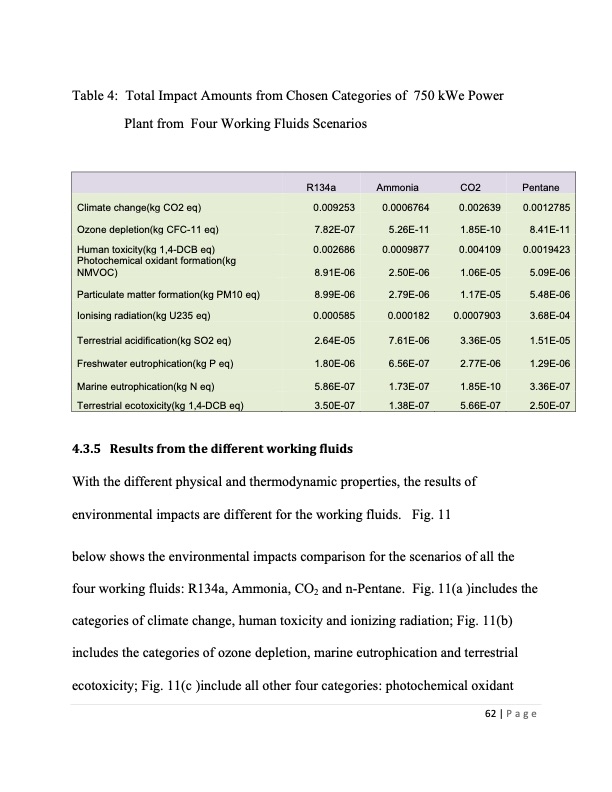

Table 4: Total Impact Amounts from Chosen Categories of 750 kWe Power Plant from Four Working Fluids Scenarios R134a Ammonia CO2 Pentane Climate change(kg CO2 eq) 0.009253 0.0006764 0.002639 0.0012785 Ozone depletion(kg CFC-11 eq) 7.82E-07 5.26E-11 1.85E-10 8.41E-11 Human toxicity(kg 1,4-DCB eq) 0.002686 0.0009877 0.004109 0.0019423 Photochemical oxidant formation(kg NMVOC) 8.91E-06 2.50E-06 1.06E-05 5.09E-06 Particulate matter formation(kg PM10 eq) 8.99E-06 2.79E-06 1.17E-05 5.48E-06 Ionising radiation(kg U235 eq) 0.000585 0.000182 0.0007903 3.68E-04 Terrestrial acidification(kg SO2 eq) 2.64E-05 7.61E-06 3.36E-05 1.51E-05 Freshwater eutrophication(kg P eq) 1.80E-06 6.56E-07 2.77E-06 1.29E-06 Marine eutrophication(kg N eq) 5.86E-07 1.73E-07 1.85E-10 3.36E-07 Terrestrial ecotoxicity(kg 1,4-DCB eq) 3.50E-07 1.38E-07 5.66E-07 2.50E-07 4.3.5 Results from the different working fluids With the different physical and thermodynamic properties, the results of environmental impacts are different for the working fluids. Fig. 11 below shows the environmental impacts comparison for the scenarios of all the four working fluids: R134a, Ammonia, CO2 and n-Pentane. Fig. 11(a )includes the categories of climate change, human toxicity and ionizing radiation; Fig. 11(b) includes the categories of ozone depletion, marine eutrophication and terrestrial ecotoxicity; Fig. 11(c )include all other four categories: photochemical oxidant 62 | P a g ePDF Image | ZEOLITES DAY NIGHT DESORPTION CYCLE ADSORPTION CYCLE
