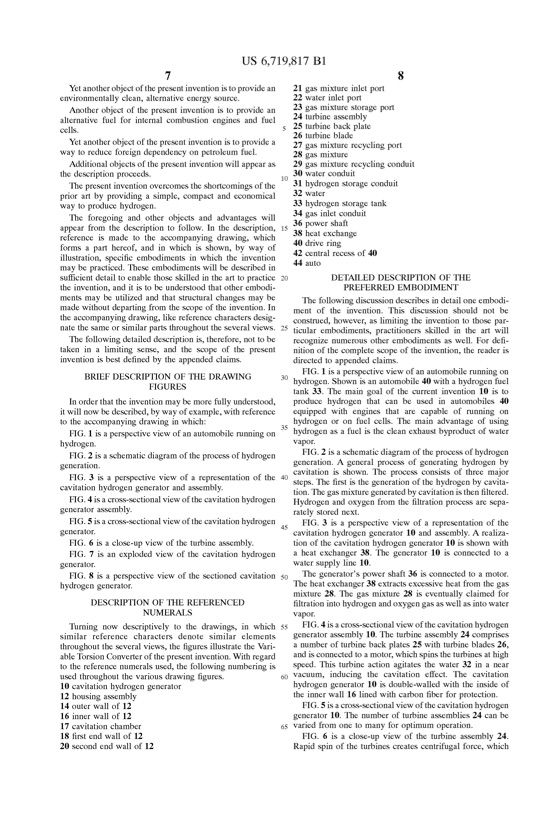

7 Yetanotherobjectofthepresentinventionistoprovidean environmentally clean, alternative energy source. Another object of the present invention is to provide an alternative fuel for internal combustion engines and fuel cells. Yet another object of the present invention is to provide a Way to reduce foreign dependency on petroleum fuel. Additional objects of the present invention Will appear as thedescriptionproceeds. The present invention overcomes the shortcomings of the prior art by providing a simple, compact and economical Way toproduce hydrogen. The foregoing and other objects and advantages Will appear from the description to folloW. In the description, 15 reference is made to the accompanying draWing, Which forms a part hereof, and in Which is shoWn, by Way of illustration, speci?c embodiments in Which the invention may be practiced. These embodiments Will be described in sufficient detail to enable those skilled in the art to practice the invention, and it is to be understood that other embodi ments may be utiliZed and that structural changes may be made Without departing from the scope of the invention. In theaccompanyingdraWing,likereferencecharactersdesig natethesameorsimilarpartsthroughouttheseveralvieWs. 25 The folloWing detailed description is, therefore, not to be taken in a limiting sense, and the scope of the present invention is best de?ned by the appended claims. BRIEF DESCRIPTION OF THE DRAWING FIGURES In order that the invention may be more fully understood, itWill noW be described, by Way of example, With reference to the accompanying draWing in Which: 35 FIG. 1 is a perspective vieW of an automobile running on hydrogen. FIG. 2 is a schematic diagram of the process of hydrogen generation. FIG. 3 is a perspective vieW of a representation of the cavitation hydrogen generator and assembly. FIG. 4 is a cross-sectional vieW of the cavitation hydrogen generatorassembly. FIG. 5 is a cross-sectional vieW of the cavitation hydrogen generator. FIG. 6 is a close-up vieW of the turbine assembly. FIG. 7 is an exploded vieW of the cavitation hydrogen generator. FIG. 8 is a perspective vieW of the sectioned cavitation hydrogengenerator. DESCRIPTION OF THE REFERENCED NUMERALS Turning noW descriptively to the draWings, in Which 55 similar reference characters denote similar elements throughouttheseveralvieWs,the?guresillustratetheVari able Torsion Converter of the present invention. With regard to the reference numerals used, the folloWing numbering is used throughout the various draWing ?gures. 21 gas mixture inlet port 22 Water inlet port 23 gas mixture storage port 24 turbine assembly 25 turbine back plate 26 turbine blade 27 gas mixture recycling port 28 gas mixture 29 gas mixture recycling conduit 30 Water conduit 31 hydrogen storage conduit 32 Water 33 hydrogen storage tank 34 gas inlet conduit 36 poWer shaft 38 heat exchange 40 drive ring 42 central recess of 40 44 auto DETAILED DESCRIPTION OF THE PREFERRED EMBODIMENT The folloWing discussion describes in detail one embodi ment of the invention. This discussion should not be construed, hoWever, as limiting the invention to those par ticularembodiments,practitionersskilledintheartWill recogniZe numerous other embodiments as Well. For de? nition of the complete scope of the invention, the reader is directed to appended claims. FIG. 1 is a perspective vieW of an automobile running on hydrogen. ShoWn is an automobile 40 With a hydrogen fuel tank 33. The main goal of the current invention 10 is to produce hydrogen that can be used in automobiles 40 equipped With engines that are capable of running on hydrogen or on fuel cells. The main advantage of using hydrogen as a fuel is the clean exhaust byproduct of Water vapor. FIG. 2 is a schematic diagram of the process of hydrogen generation.A generalprocessofgeneratinghydrogenby cavitation is shoWn. The process consists of three major steps. The ?rst is the generation of the hydrogen by cavita tion. The gas mixture generated by cavitation is then ?ltered. Hydrogen and oxygen from the ?ltration process are sepa rately stored next. FIG. 3 is a perspective vieW of a representation of the cavitationhydrogengenerator10andassembly.A realiZa tion of the cavitation hydrogen generator 10 is shoWn With a heat exchanger 38. The generator 10 is connected to a Water supply line 10. The generator’s poWer shaft 36 is connected to a motor. The heat exchanger 38 extracts excessive heat from the gas mixture 28. The gas mixture 28 is eventually claimed for ?ltration into hydrogen and oxygen gas as Well as into Water vapor. FIG. 4 is a cross-sectional vieW of the cavitation hydrogen generator assembly 10. The turbine assembly 24 comprises a number of turbine back plates 25 With turbine blades 26, and is connected to a motor, Which spins the turbines at high speed. This turbine action agitates the Water 32 in a near vacuum, inducing the cavitation effect. The cavitation hydrogen generator 10 is double-Walled With the inside of the inner Wall 16 lined With carbon ?ber for protection. FIG. 5 is a cross-sectional vieW of the cavitation hydrogen generator 10. The number of turbine assemblies 24 can be variedfromonetomanyforoptimumoperation. FIG. 6 is a close-up vieW of the turbine assembly 24. Rapid spin of the turbines creates centrifugal force, Which 10 cavitation hydrogen generator 12housingassembly 14 outer Wall of 12 16 inner Wall of 12 17cavitationchamber 18 ?rst end Wall of 12 20 second end Wall of 12 65 US 6,719,817B1 45PDF Image | CAVITATION HYDROGEN GENERATOR
