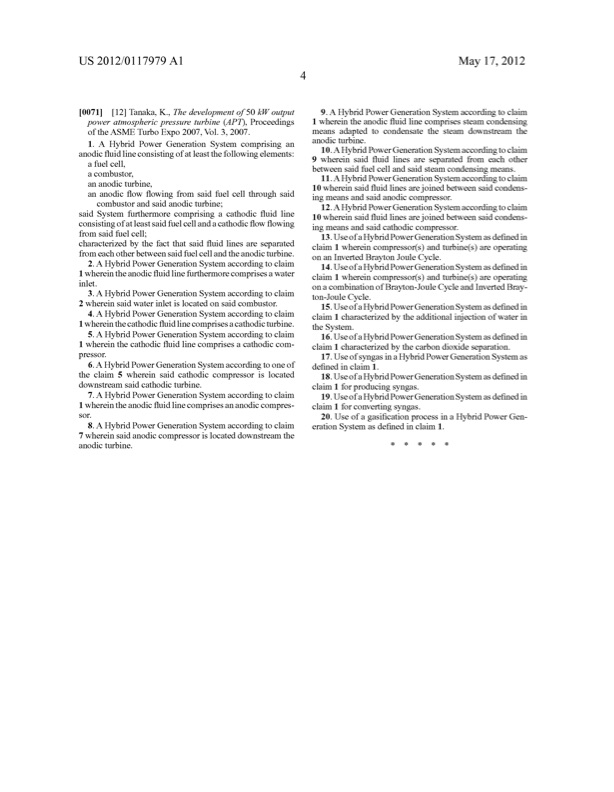

Text from PDF Page: 010
US 2012/0117979 A1 May 17,2012 [0071] [12]Tanaka,K.,Thedevelopmentof50kWoutput power atmospheric pressure turbine (APT), Proceedings oftheASME TurboExpo2007,Vol.3,2007. 1. A Hybrid Power Generation System comprising an anodic?uidlineconsistingofatleastthefollowingelements: a fuel cell, acombustor, an anodic turbine, an anodic ?ow ?owing from said fuel cell through said combustor and said anodic turbine; said System furthermore comprising a cathodic ?uid line consistingofatleastsaidfuelcellandacathodic?ow ?owing from said fuel cell; characterized by the fact that said ?uid lines are separated fromeachotherbetweensaidfuelcellandtheanodicturbine. 2.A HybridPowerGenerationSystemaccordingtoclaim 1whereintheanodic?uidlinefurthermorecomprisesawater inlet. 3.A HybridPowerGenerationSystemaccordingtoclaim 2 wherein said water inlet is located on said combustor. 4.A HybridPowerGenerationSystemaccordingtoclaim 1whereinthecathodic?uidlinecomprisesacathodicturbine. 5.A HybridPowerGenerationSystemaccordingtoclaim 1 wherein the cathodic ?uid line comprises a cathodic com pressor. 6.A HybridPowerGenerationSystemaccordingtooneof the claim 5 wherein said cathodic compressor is located downstream said cathodic turbine. 7.A HybridPowerGenerationSystemaccordingtoclaim 1whereintheanodic?uidlinecomprisesananodiccompres sor. 8.A HybridPowerGenerationSystemaccordingtoclaim 7 wherein said anodic compressor is located downstream the anodic turbine. 9.AHybridPowerGenerationSystemaccordingtoclaim 1 wherein the anodic ?uid line comprises steam condensing means adapted to condensate the steam downstream the anodic turbine. 10.A HybridPowerGenerationSystemaccordingtoclaim 9 wherein said ?uid lines are separated from each other between said fuel cell and said steam condensing means. 11.A HybridPowerGenerationSystemaccordingtoclaim 10 wherein said ?uid lines arejoined between said condens ing means and said anodic compressor. 12.A HybridPowerGenerationSystemaccordingtoclaim 10 wherein said ?uid lines arejoined between said condens ing means and said cathodic compressor. 13. Use of a Hybrid Power Generation System as de?ned in claim 1 wherein compressor(s) and turbine(s) are operating on an Inverted Brayton Joule Cycle. 14. Use of a Hybrid Power Generation System as de?ned in claim 1 wherein compressor(s) and turbine(s) are operating onacombinationofBrayton-JouleCycleandInvertedBray ton-JouleCycle. 15. Use of a Hybrid Power Generation System as de?ned in claim 1 characterized by the additional injection of water in theSystem. 16. Use of a Hybrid Power Generation System as de?ned in claim1characterizedbythecarbondioxideseparation. 17. Use of syngas in a Hybrid Power Generation System as de?ned in claim 1. 18. Use of a Hybrid Power Generation System as de?ned in claim 1 for producing syngas. 19.UseofaHybridPowerGenerationSystemasde?nedin claim 1 for converting syngas. 20. Use of a gasi?cation process in a Hybrid Power Gen eration System as de?ned in claim 1. *****PDF Image | HYBRID CYCLES OF GAS TURBINE WITH CO2 SEPARATION
PDF Search Title:
HYBRID CYCLES OF GAS TURBINE WITH CO2 SEPARATIONOriginal File Name Searched:
US20120117979.pdfDIY PDF Search: Google It | Yahoo | Bing
