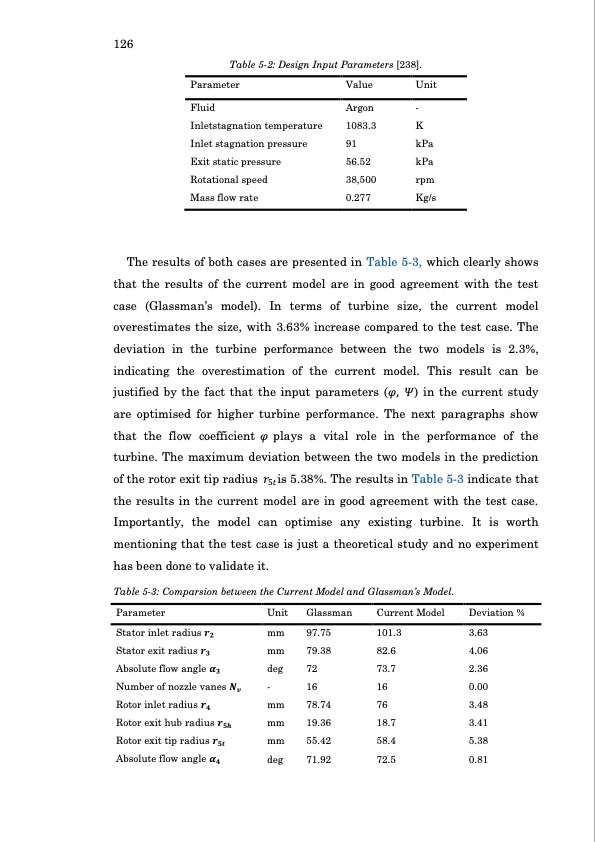

Text from PDF Page: 145

126 Table β€Ž5-2: Design Input Parameters [238]. Parameter Fluid Inletstagnation temperature Inlet stagnation pressure Exit static pressure Rotational speed Mass flow rate Value Unit Argon - 1083.3 K 91 kPa 56.52 kPa 38,500 rpm 0.277 Kg/s The results of both cases are presented in Table β€Ž5-3, which clearly shows that the results of the current model are in good agreement with the test case (Glassman’s model). In terms of turbine size, the current model overestimates the size, with 3.63% increase compared to the test case. The deviation in the turbine performance between the two models is 2.3%, indicating the overestimation of the current model. This result can be justified by the fact that the input parameters (πœ‘, 𝛹) in the current study are optimised for higher turbine performance. The next paragraphs show that the flow coefficient πœ‘ plays a vital role in the performance of the turbine. The maximum deviation between the two models in the prediction of the rotor exit tip radius π‘Ÿ5𝑑is 5.38%. The results in Table β€Ž5-3 indicate that the results in the current model are in good agreement with the test case. Importantly, the model can optimise any existing turbine. It is worth mentioning that the test case is just a theoretical study and no experiment has been done to validate it. Table β€Ž5-3: Comparsion between the Current Model and Glassman’s Model. Parameter Stator inlet radius π’“πŸ Stator exit radius π’“πŸ‘ Absolute flow angle πœΆπŸ‘ Number of nozzle vanes 𝑡𝒗 Rotor inlet radius π’“πŸ’ Rotor exit hub radius π’“πŸ“π’‰ Rotor exit tip radius π’“πŸ“π’• Absolute flow angle πœΆπŸ’ Unit Glassman mm 97.75 mm 79.38 deg 72 - 16 mm 78.74 mm 19.36 mm 55.42 deg 71.92 Current Model 101.3 82.6 73.7 16 76 18.7 58.4 72.5 Deviation % 3.63 4.06 2.36 0.00 3.48 3.41 5.38 0.81
