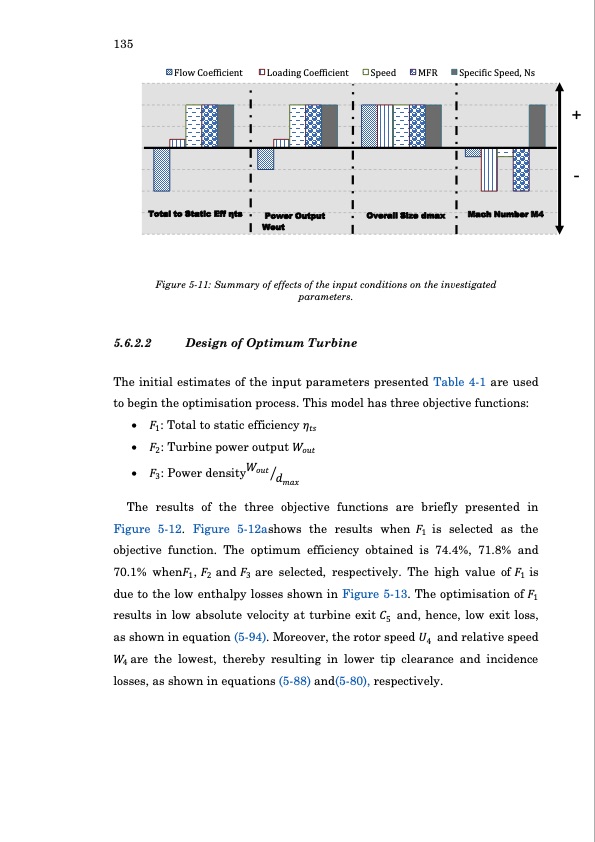

135 Flow Coefficient Loading Coefficient Speed MFR Specific Speed, Ns + - Total to Static Eff Ξ·ts Power Output Wout Overall Size dmax Mach Number M4 Figure β5-11: Summary of effects of the input conditions on the investigated parameters. 5.6.2.2 Design of Optimum Turbine The initial estimates of the input parameters presented Table β4-1 are used to begin the optimisation process. This model has three objective functions: ο· πΉ1: Total to static efficiency ππ‘π ο· πΉ2: Turbine power output πππ’π‘ ο· πΉ3: Power densityπππ’π‘ ππππ₯ The results of the three objective functions are briefly presented in Figure β5-12. Figure β5-12ashows the results when πΉ1 is selected as the objective function. The optimum efficiency obtained is 74.4%, 71.8% and 70.1% whenπΉ1, πΉ2 and πΉ3 are selected, respectively. The high value of πΉ1 is due to the low enthalpy losses shown in Figure β5-13. The optimisation of πΉ1 results in low absolute velocity at turbine exit πΆ5 and, hence, low exit loss, as shown in equation (β5-94). Moreover, the rotor speed π4 and relative speed π4 are the lowest, thereby resulting in lower tip clearance and incidence losses, as shown in equations (β5-88) and(β5-80), respectively.PDF Image | Automotive Radial Turbine Expander Design WHR
