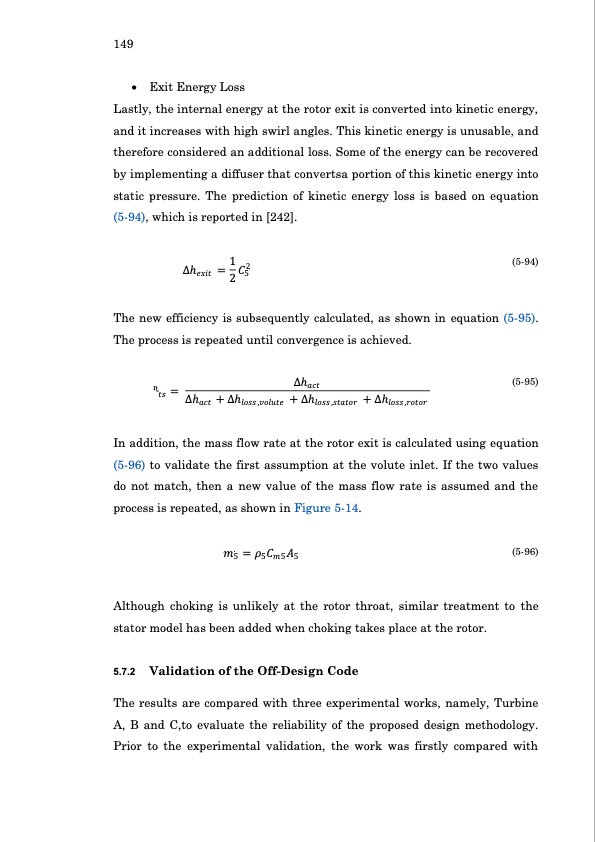

149 ๏ท Exit Energy Loss Lastly, the internal energy at the rotor exit is converted into kinetic energy, and it increases with high swirl angles. This kinetic energy is unusable, and therefore considered an additional loss. Some of the energy can be recovered by implementing a diffuser that convertsa portion of this kinetic energy into static pressure. The prediction of kinetic energy loss is based on equation (โ5-94), which is reported in [242]. โ ๐ = 1 ๐ถ 2 ( โ5 - 9 4 ) ๐๐ฅ๐๐ก 25 The new efficiency is subsequently calculated, as shown in equation (โ5-95). The process is repeated until convergence is achieved. ษณ๐ก๐ = โ๐๐๐๐ก (โ5-95) โ๐๐๐๐ก +โ๐๐๐๐ ๐ ,๐ฃ๐๐๐ข๐ก๐ +โ๐๐๐๐ ๐ ,๐ ๐ก๐๐ก๐๐ +โ๐๐๐๐ ๐ ,๐๐๐ก๐๐ In addition, the mass flow rate at the rotor exit is calculated using equation (โ5-96) to validate the first assumption at the volute inlet. If the two values do not match, then a new value of the mass flow rate is assumed and the process is repeated, as shown in Figure โ5-14. ๐. =๐๐ถ ๐ด 5 5๐55 (โ5-96) Although choking is unlikely at the rotor throat, similar treatment to the stator model has been added when choking takes place at the rotor. 5.7.2 Validation of the Off-Design Code The results are compared with three experimental works, namely, Turbine A, B and C,to evaluate the reliability of the proposed design methodology. Prior to the experimental validation, the work was firstly compared withPDF Image | Automotive Radial Turbine Expander Design WHR
