Text from PDF Page: 171

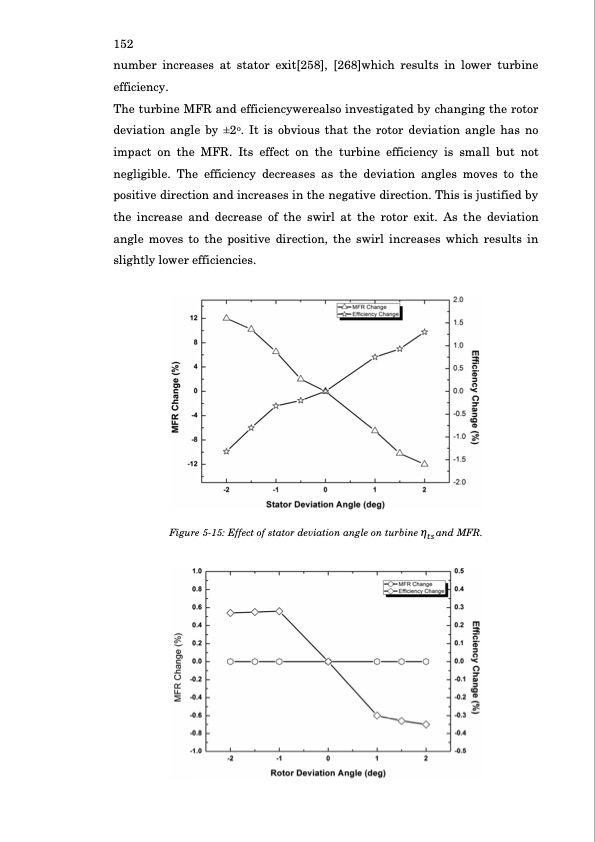

152 number increases at stator exit[258], [268]which results in lower turbine efficiency. The turbine MFR and efficiencywerealso investigated by changing the rotor deviation angle by ±2o. It is obvious that the rotor deviation angle has no impact on the MFR. Its effect on the turbine efficiency is small but not negligible. The efficiency decreases as the deviation angles moves to the positive direction and increases in the negative direction. This is justified by the increase and decrease of the swirl at the rotor exit. As the deviation angle moves to the positive direction, the swirl increases which results in slightly lower efficiencies. Figure 5-15: Effect of stator deviation angle on turbine 𝜂𝑡𝑠 and MFR.PDF Image | Automotive Radial Turbine Expander Design WHR
