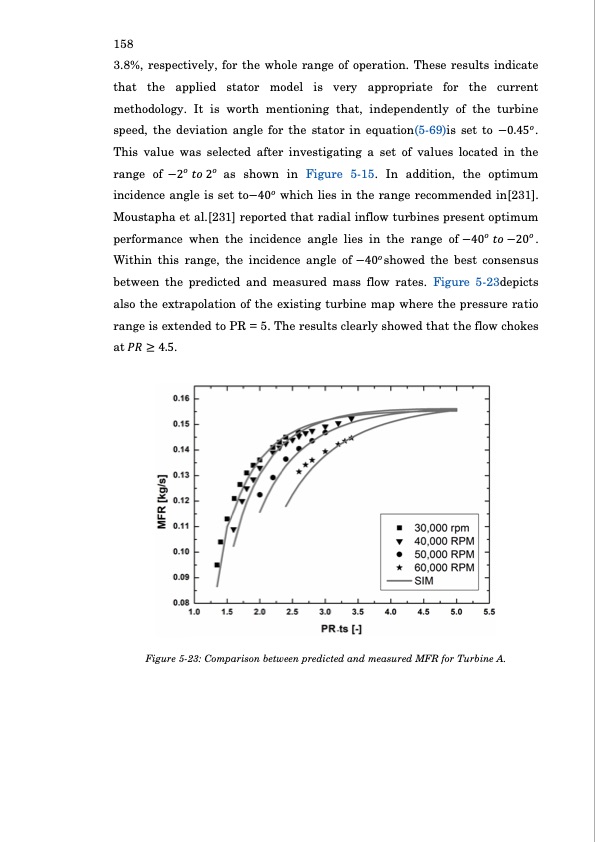

158 3.8%, respectively, for the whole range of operation. These results indicate that the applied stator model is very appropriate for the current methodology. It is worth mentioning that, independently of the turbine speed, the deviation angle for the stator in equation(β5-69)is set to β0.45π. This value was selected after investigating a set of values located in the range of β2π π‘π 2π as shown in Figure β5-15. In addition, the optimum incidence angle is set toβ40π which lies in the range recommended in[231]. Moustapha et al.[231] reported that radial inflow turbines present optimum performance when the incidence angle lies in the range of β40π π‘π β20π . Within this range, the incidence angle of β40π showed the best consensus between the predicted and measured mass flow rates. Figure β5-23depicts also the extrapolation of the existing turbine map where the pressure ratio range is extended to PR = 5. The results clearly showed that the flow chokes at ππ β₯ 4.5. Figure β5-23: Comparison between predicted and measured MFR for Turbine A.PDF Image | Automotive Radial Turbine Expander Design WHR
