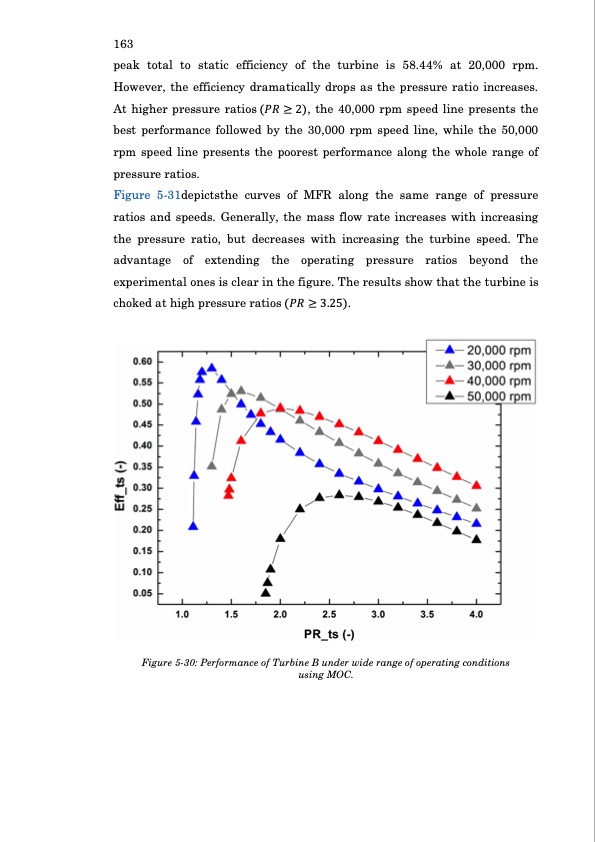

163 peak total to static efficiency of the turbine is 58.44% at 20,000 rpm. However, the efficiency dramatically drops as the pressure ratio increases. At higher pressure ratios (𝑃𝑅 ≥ 2), the 40,000 rpm speed line presents the best performance followed by the 30,000 rpm speed line, while the 50,000 rpm speed line presents the poorest performance along the whole range of pressure ratios. Figure 5-31depictsthe curves of MFR along the same range of pressure ratios and speeds. Generally, the mass flow rate increases with increasing the pressure ratio, but decreases with increasing the turbine speed. The advantage of extending the operating pressure ratios beyond the experimental ones is clear in the figure. The results show that the turbine is choked at high pressure ratios (𝑃𝑅 ≥ 3.25). Figure 5-30: Performance of Turbine B under wide range of operating conditions using MOC.PDF Image | Automotive Radial Turbine Expander Design WHR
