Text from PDF Page: 223

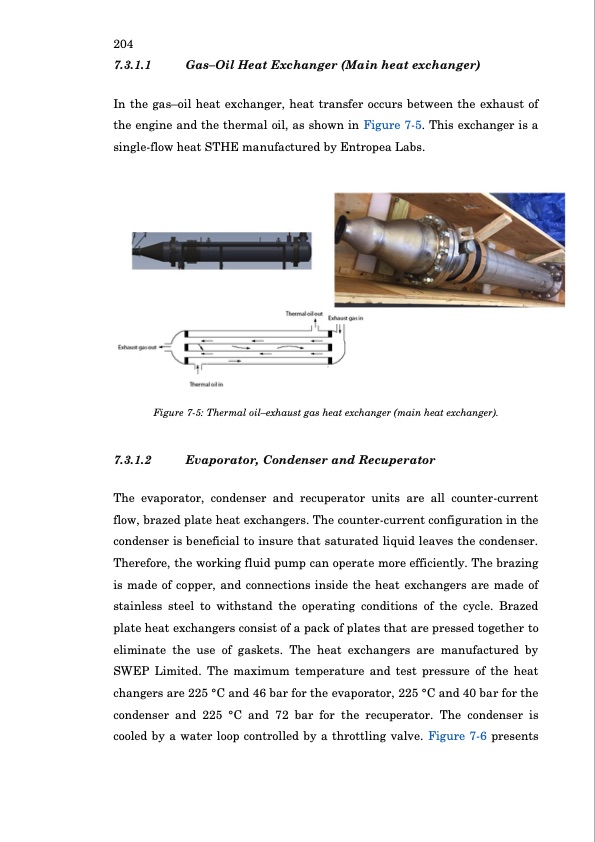

204 7.3.1.1 Gas–Oil Heat Exchanger (Main heat exchanger) In the gas–oil heat exchanger, heat transfer occurs between the exhaust of the engine and the thermal oil, as shown in Figure 7-5. This exchanger is a single-flow heat STHE manufactured by Entropea Labs. Figure 7-5: Thermal oil–exhaust gas heat exchanger (main heat exchanger). 7.3.1.2 Evaporator, Condenser and Recuperator The evaporator, condenser and recuperator units are all counter-current flow, brazed plate heat exchangers. The counter-current configuration in the condenser is beneficial to insure that saturated liquid leaves the condenser. Therefore, the working fluid pump can operate more efficiently. The brazing is made of copper, and connections inside the heat exchangers are made of stainless steel to withstand the operating conditions of the cycle. Brazed plate heat exchangers consist of a pack of plates that are pressed together to eliminate the use of gaskets. The heat exchangers are manufactured by SWEP Limited. The maximum temperature and test pressure of the heat changers are 225 °C and 46 bar for the evaporator, 225 °C and 40 bar for the condenser and 225 °C and 72 bar for the recuperator. The condenser is cooled by a water loop controlled by a throttling valve. Figure 7-6 presentsPDF Image | Automotive Radial Turbine Expander Design WHR
