Text from PDF Page: 227

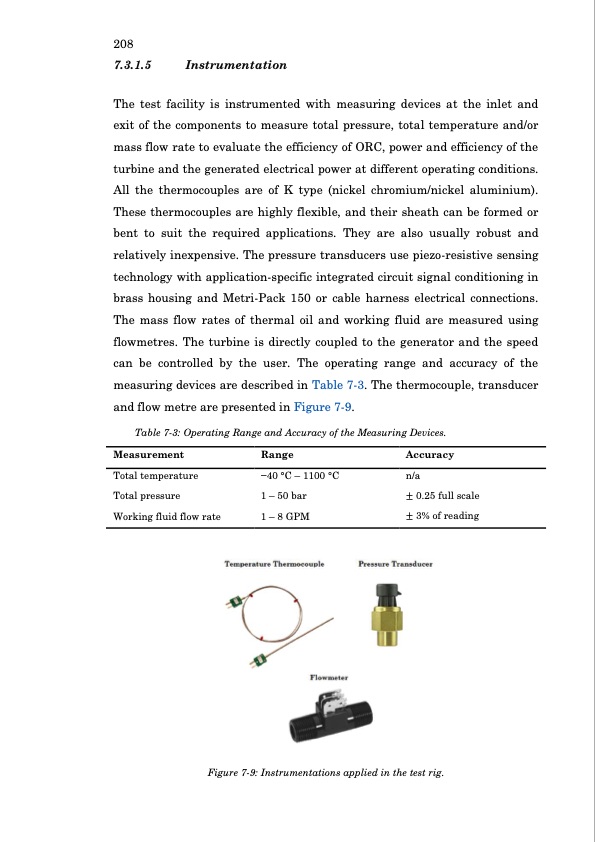

208 7.3.1.5 Instrumentation The test facility is instrumented with measuring devices at the inlet and exit of the components to measure total pressure, total temperature and/or mass flow rate to evaluate the efficiency of ORC, power and efficiency of the turbine and the generated electrical power at different operating conditions. All the thermocouples are of K type (nickel chromium/nickel aluminium). These thermocouples are highly flexible, and their sheath can be formed or bent to suit the required applications. They are also usually robust and relatively inexpensive. The pressure transducers use piezo-resistive sensing technology with application-specific integrated circuit signal conditioning in brass housing and Metri-Pack 150 or cable harness electrical connections. The mass flow rates of thermal oil and working fluid are measured using flowmetres. The turbine is directly coupled to the generator and the speed can be controlled by the user. The operating range and accuracy of the measuring devices are described in Table 7-3. The thermocouple, transducer and flow metre are presented in Figure 7-9. Table 7-3: Operating Range and Accuracy of the Measuring Devices. Measurement Total temperature Total pressure Working fluid flow rate Range −40 °C – 1100 °C 1 – 50 bar 1 – 8 GPM Accuracy n/a ± 0.25 full scale ± 3% of reading Figure 7-9: Instrumentations applied in the test rig.PDF Image | Automotive Radial Turbine Expander Design WHR
