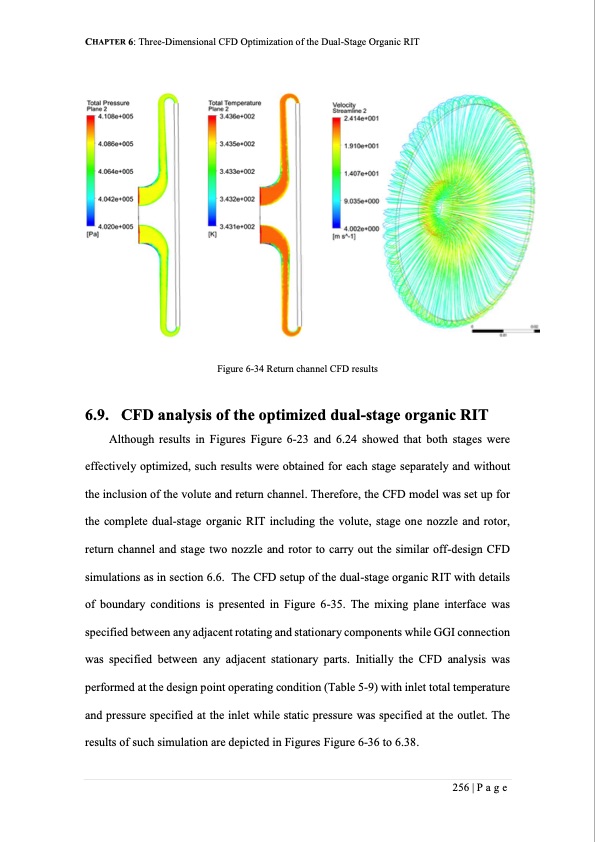

CHAPTER 6: Three-Dimensional CFD Optimization of the Dual-Stage Organic RIT Figure 6-34 Return channel CFD results 6.9. CFD analysis of the optimized dual-stage organic RIT Although results in Figures Figure 6-23 and 6.24 showed that both stages were effectively optimized, such results were obtained for each stage separately and without the inclusion of the volute and return channel. Therefore, the CFD model was set up for the complete dual-stage organic RIT including the volute, stage one nozzle and rotor, return channel and stage two nozzle and rotor to carry out the similar off-design CFD simulations as in section 6.6. The CFD setup of the dual-stage organic RIT with details of boundary conditions is presented in Figure 6-35. The mixing plane interface was specified between any adjacent rotating and stationary components while GGI connection was specified between any adjacent stationary parts. Initially the CFD analysis was performed at the design point operating condition (Table 5-9) with inlet total temperature and pressure specified at the inlet while static pressure was specified at the outlet. The results of such simulation are depicted in Figures Figure 6-36 to 6.38. 256 | P a g ePDF Image | SMALL-SCALE RADIAL INFLOW TURBINE FOR WHR ORC
