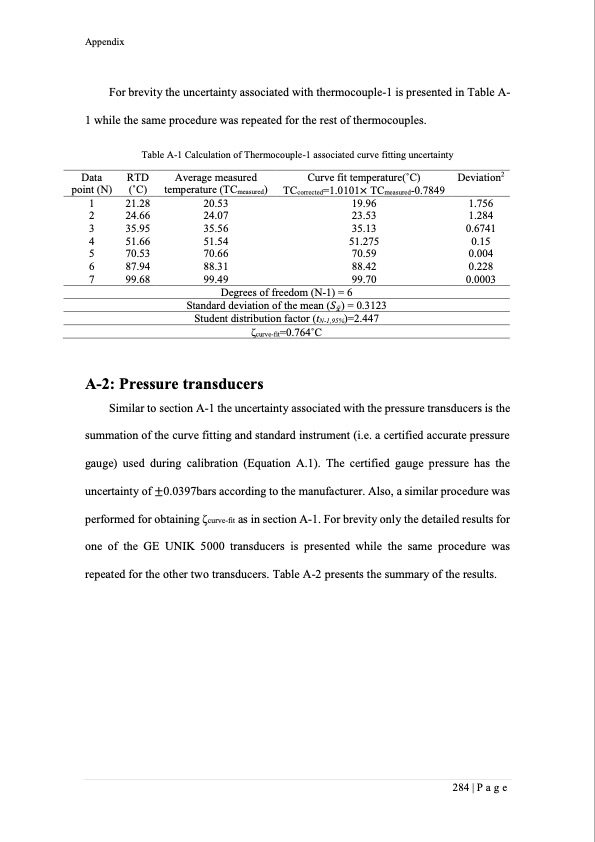

Appendix For brevity the uncertainty associated with thermocouple-1 is presented in Table A- 1 while the same procedure was repeated for the rest of thermocouples. Table A-1 Calculation of Thermocouple-1 associated curve fitting uncertainty Data point (N) 1 2 3 4 5 6 7 RTD Average measured ( ̊C) temperature (TCmeasured) Curve fit temperature( ̊C) Deviation2 TCcorrected=1.0101× TCmeasured-0.7849 21.28 20.53 24.66 24.07 35.95 35.56 51.66 51.54 51.275 0.15 70.53 70.66 87.94 88.31 99.68 99.49 70.59 0.004 88.42 0.228 99.70 0.0003 19.96 1.756 23.53 1.284 35.13 0.6741 Degrees of freedom (N-1) = 6 Standard deviation of the mean (𝑆𝑥̅) = 0.3123 Student distribution factor (tN-1,95%)=2.447 ζcurve-fit=0.764 ̊C A-2: Pressure transducers Similar to section A-1 the uncertainty associated with the pressure transducers is the summation of the curve fitting and standard instrument (i.e. a certified accurate pressure gauge) used during calibration (Equation A.1). The certified gauge pressure has the uncertainty of ±0.0397bars according to the manufacturer. Also, a similar procedure was performed for obtaining ζcurve-fit as in section A-1. For brevity only the detailed results for one of the GE UNIK 5000 transducers is presented while the same procedure was repeated for the other two transducers. Table A-2 presents the summary of the results. 284 | P a g ePDF Image | SMALL-SCALE RADIAL INFLOW TURBINE FOR WHR ORC
