Text from PDF Page: 112

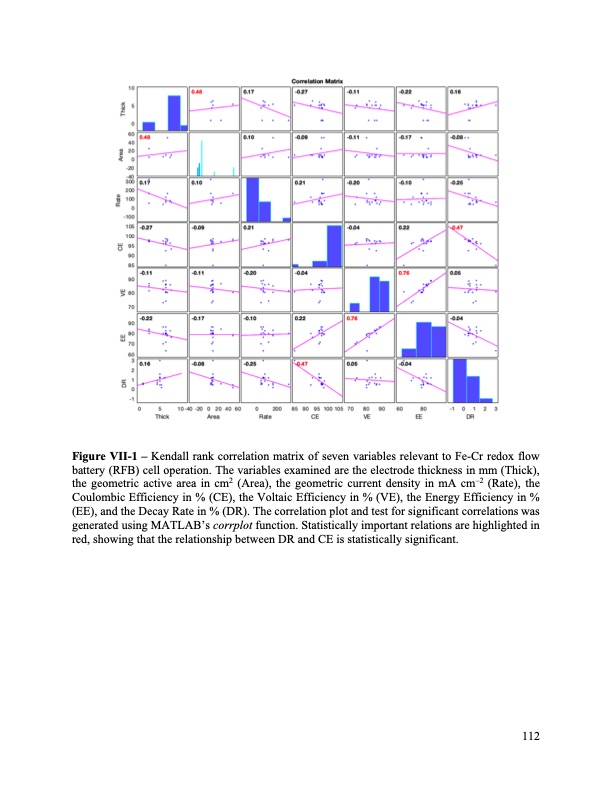

Figure VII-1 – Kendall rank correlation matrix of seven variables relevant to Fe-Cr redox flow battery (RFB) cell operation. The variables examined are the electrode thickness in mm (Thick), the geometric active area in cm2 (Area), the geometric current density in mA cm–2 (Rate), the Coulombic Efficiency in % (CE), the Voltaic Efficiency in % (VE), the Energy Efficiency in % (EE), and the Decay Rate in % (DR). The correlation plot and test for significant correlations was generated using MATLAB’s corrplot function. Statistically important relations are highlighted in red, showing that the relationship between DR and CE is statistically significant. 112PDF Image | Bringing Redox Flow Batteries to the Grid
