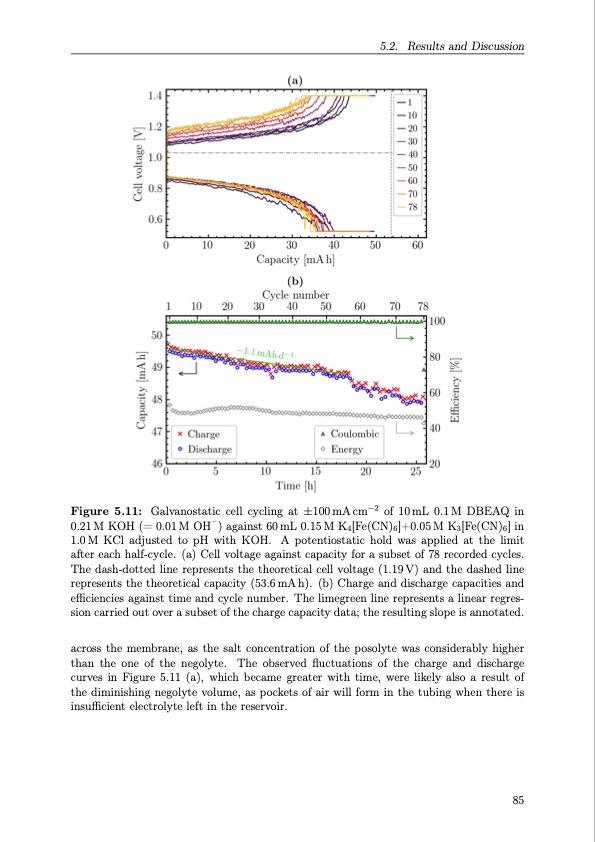

5.2. Results and Discussion Figure 5.11: Galvanostatic cell cycling at ±100 mA cm−2 of 10 mL 0.1 M DBEAQ in 0.21 M KOH (= 0.01 M OH– ) against 60 mL 0.15 M K4[Fe(CN)6]+0.05 M K3[Fe(CN)6] in 1.0M KCl adjusted to pH with KOH. A potentiostatic hold was applied at the limit after each half-cycle. (a) Cell voltage against capacity for a subset of 78 recorded cycles. The dash-dotted line represents the theoretical cell voltage (1.19 V) and the dashed line represents the theoretical capacity (53.6 mA h). (b) Charge and discharge capacities and efficiencies against time and cycle number. The limegreen line represents a linear regres- sion carried out over a subset of the charge capacity data; the resulting slope is annotated. across the membrane, as the salt concentration of the posolyte was considerably higher than the one of the negolyte. The observed fluctuations of the charge and discharge curves in Figure 5.11 (a), which became greater with time, were likely also a result of the diminishing negolyte volume, as pockets of air will form in the tubing when there is insufficient electrolyte left in the reservoir. 85PDF Image | Organic Redox Flow Batteries 2023
