Text from PDF Page: 004

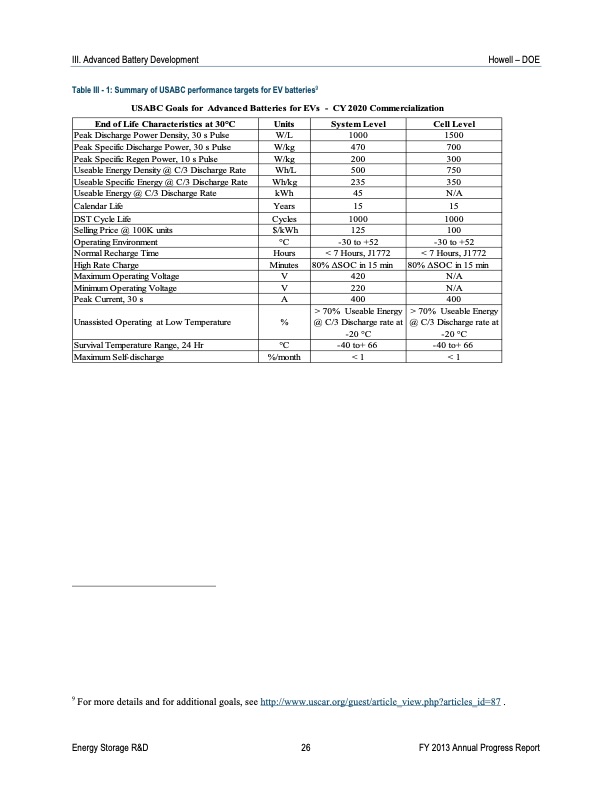

III. Advanced Battery Development Howell – DOE Table III - 1: Summary of USABC performance targets for EV batteries9 USABC Goals for Advanced Batteries for EVs - CY 2020 Commercialization End of Life Characteristics at 30°C Units System Level Cell Level Peak Discharge Power Density, 30 s Pulse W/L 1000 1500 Peak Specific Discharge Power, 30 s Pulse W/kg 470 700 Peak Specific Regen Power, 10 s Pulse W/kg 200 300 Useable Energy Density @ C/3 Discharge Rate Wh/L 500 750 Useable Specific Energy @ C/3 Discharge Rate Wh/kg 235 350 Useable Energy @ C/3 Discharge Rate kWh 45 N/A Calendar Life Years 15 15 DST Cycle Life C yc le s 1000 1000 Selling Price @ 100K units $/kWh 125 100 Operating Environment °C -30 to +52 -30 to +52 Normal Recharge Time Hours < 7 Hours, J1772 < 7 Hours, J1772 High Rate Charge Minutes 80% ΔSOC in 15 min 80% ΔSOC in 15 min Maximum Operating Voltage V 420 N/A Minimum Operating Voltage V 220 N/A Peak Current, 30 s A 400 400 Unassisted Operating at Low Temperature % > 70% Useable Energy @ C/3 Discharge rate at -20 °C > 70% Useable Energy @ C/3 Discharge rate at -20 °C Survival Temperature Range, 24 Hr °C -40 to+ 66 -40 to+ 66 Maximum Self-discharge %/month <1 <1 9 For more details and for additional goals, see http://www.uscar.org/guest/article_view.php?articles_id=87 . Energy Storage R&D 26 FY 2013 Annual Progress ReportPDF Image | Advanced Battery Development
