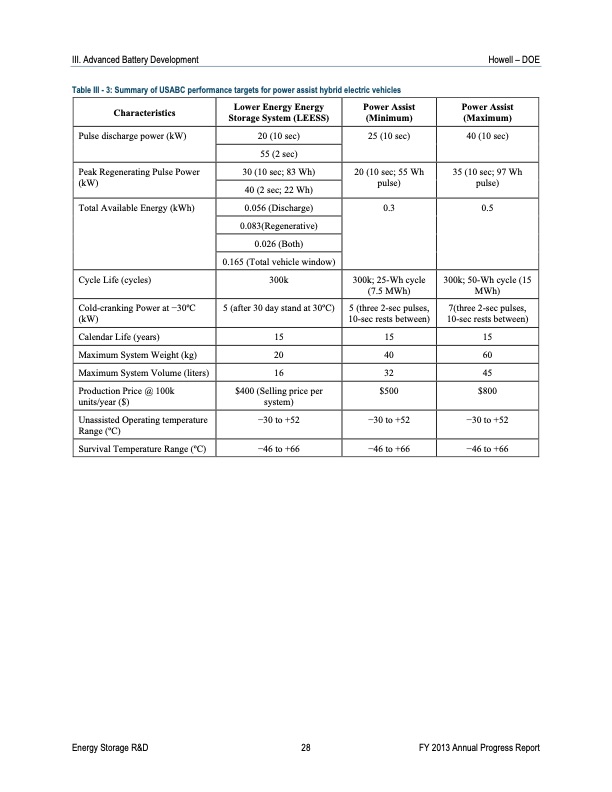

III. Advanced Battery Development Howell – DOE Table III - 3: Summary of USABC performance targets for power assist hybrid electric vehicles Characteristics Pulse discharge power (kW) Peak Regenerating Pulse Power (kW) Total Available Energy (kWh) Cycle Life (cycles) Cold-cranking Power at −30oC (kW) Calendar Life (years) Maximum System Weight (kg) Maximum System Volume (liters) Production Price @ 100k units/year ($) Unassisted Operating temperature Range (oC) Survival Temperature Range (oC) Lower Energy Energy Storage System (LEESS) 20 (10 sec) 55 (2 sec) 30 (10 sec; 83 Wh) 40 (2 sec; 22 Wh) 0.056 (Discharge) 0.083(Regenerative) 0.026 (Both) 0.165 (Total vehicle window) 300k 5 (after 30 day stand at 30oC) 15 20 16 $400 (Selling price per system) −30 to +52 −46 to +66 Power Assist (Minimum) 25 (10 sec) 20 (10 sec; 55 Wh pulse) 0.3 300k; 25-Wh cycle (7.5 MWh) 5 (three 2-sec pulses, 10-sec rests between) 15 40 32 $500 −30 to +52 −46 to +66 Power Assist (Maximum) 40 (10 sec) 35 (10 sec; 97 Wh pulse) 0.5 300k; 50-Wh cycle (15 MWh) 7(three 2-sec pulses, 10-sec rests between) 15 60 45 $800 −30 to +52 −46 to +66 Energy Storage R&D 28 FY 2013 Annual Progress ReportPDF Image | Advanced Battery Development
