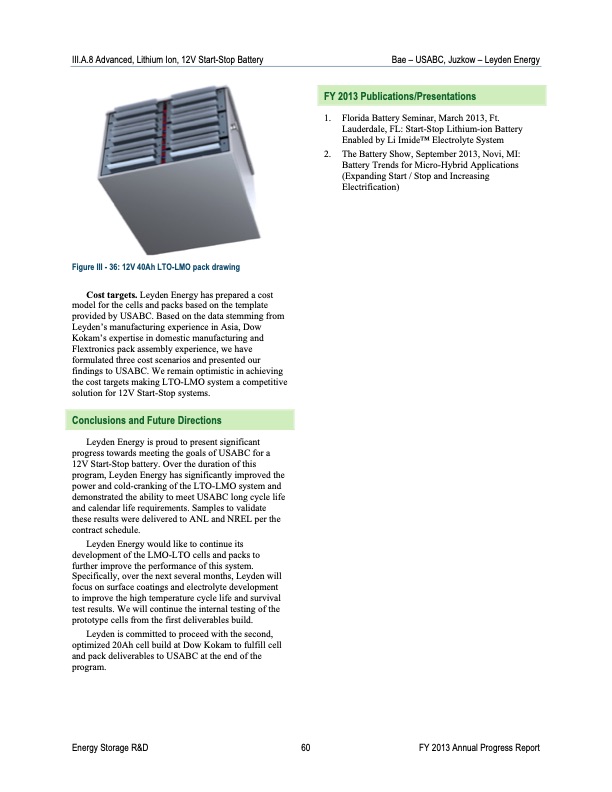

III.A.8 Advanced, Lithium Ion, 12V Start-Stop Battery Bae – USABC, Juzkow – Leyden Energy FY 2013 Publications/Presentations Figure III - 36: 12V 40Ah LTO-LMO pack drawing Cost targets. Leyden Energy has prepared a cost model for the cells and packs based on the template provided by USABC. Based on the data stemming from Leyden’s manufacturing experience in Asia, Dow Kokam’s expertise in domestic manufacturing and Flextronics pack assembly experience, we have formulated three cost scenarios and presented our findings to USABC. We remain optimistic in achieving the cost targets making LTO-LMO system a competitive solution for 12V Start-Stop systems. Conclusions and Future Directions Leyden Energy is proud to present significant progress towards meeting the goals of USABC for a 12V Start-Stop battery. Over the duration of this program, Leyden Energy has significantly improved the power and cold-cranking of the LTO-LMO system and demonstrated the ability to meet USABC long cycle life and calendar life requirements. Samples to validate these results were delivered to ANL and NREL per the contract schedule. Leyden Energy would like to continue its development of the LMO-LTO cells and packs to further improve the performance of this system. Specifically, over the next several months, Leyden will focus on surface coatings and electrolyte development to improve the high temperature cycle life and survival test results. We will continue the internal testing of the prototype cells from the first deliverables build. Leyden is committed to proceed with the second, optimized 20Ah cell build at Dow Kokam to fulfill cell and pack deliverables to USABC at the end of the program. 1. 2. Florida Battery Seminar, March 2013, Ft. Lauderdale, FL: Start-Stop Lithium-ion Battery Enabled by Li ImideTM Electrolyte System The Battery Show, September 2013, Novi, MI: Battery Trends for Micro-Hybrid Applications (Expanding Start / Stop and Increasing Electrification) Energy Storage R&D 60 FY 2013 Annual Progress ReportPDF Image | Advanced Battery Development
