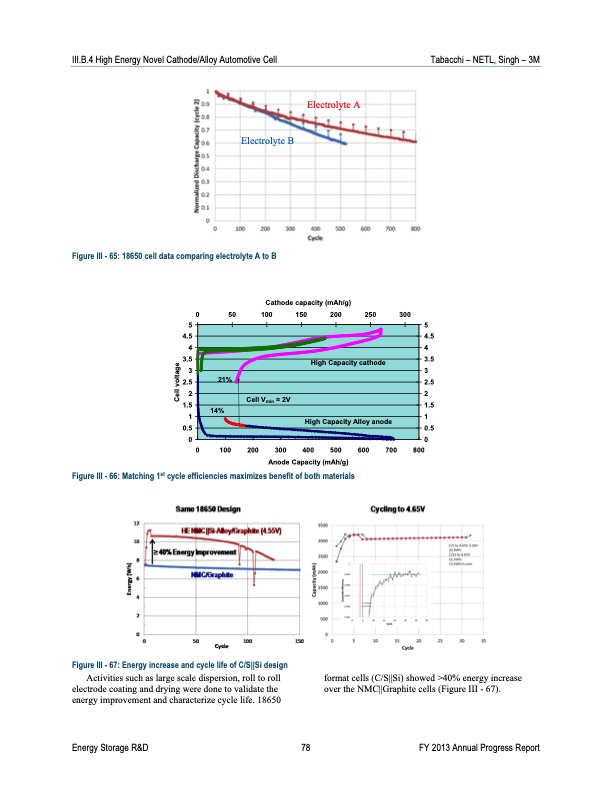

III.B.4 High Energy Novel Cathode/Alloy Automotive Cell Tabacchi – NETL, Singh – 3M Electrolyte B Figure III - 65: 18650 cell data comparing electrolyte A to B Cathode capacity (mAh/g) 0 50 100 150 200 250 300 55 4.5 4.5 44 3.5 3.5 33 2.5 2.5 22 1.5 1.5 11 0.5 0.5 00 0 100 200 300 400 500 600 700 800 Anode Capacity (mAh/g) Figure III - 66: Matching 1st cycle efficiencies maximizes benefit of both materials Electrolyte A High Capacity cathode 21% Cell Vmin = 2V 14% High Capacity Alloy anode Figure III - 67: Energy increase and cycle life of C/S||Si design Activities such as large scale dispersion, roll to roll electrode coating and drying were done to validate the energy improvement and characterize cycle life. 18650 format cells (C/S||Si) showed >40% energy increase over the NMC||Graphite cells (Figure III - 67). Energy Storage R&D 78 FY 2013 Annual Progress Report Cell voltagePDF Image | Advanced Battery Development
