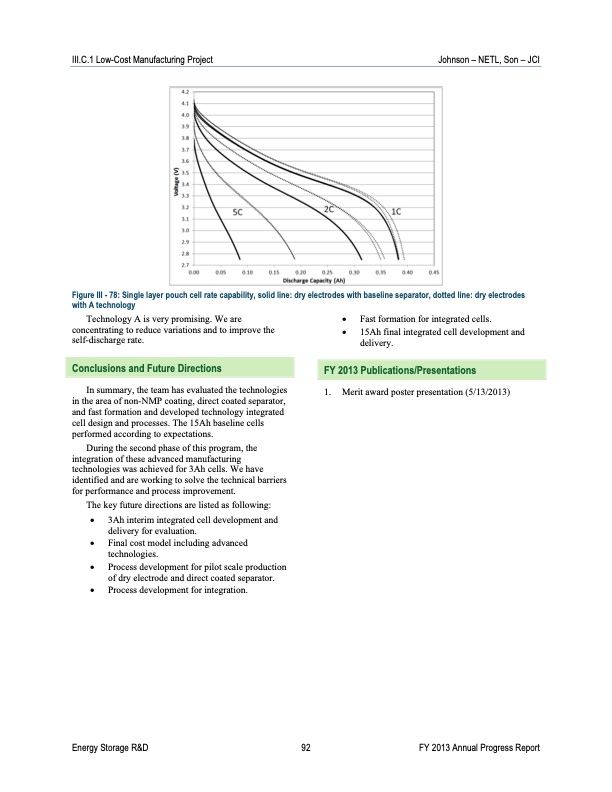

III.C.1 Low-Cost Manufacturing Project Johnson – NETL, Son – JCI Figure III - 78: Single layer pouch cell rate capability, solid line: dry electrodes with baseline separator, dotted line: dry electrodes with A technology Technology A is very promising. We are concentrating to reduce variations and to improve the self-discharge rate. Conclusions and Future Directions In summary, the team has evaluated the technologies in the area of non-NMP coating, direct coated separator, and fast formation and developed technology integrated cell design and processes. The 15Ah baseline cells performed according to expectations. During the second phase of this program, the integration of these advanced manufacturing technologies was achieved for 3Ah cells. We have identified and are working to solve the technical barriers for performance and process improvement. The key future directions are listed as following: 3Ah interim integrated cell development and delivery for evaluation. Final cost model including advanced technologies. Process development for pilot scale production of dry electrode and direct coated separator. Process development for integration. Fast formation for integrated cells. 15Ah final integrated cell development and delivery. FY 2013 Publications/Presentations Energy Storage R&D 92 FY 2013 Annual Progress Report 1. Merit award poster presentation (5/13/2013)PDF Image | Advanced Battery Development
