PDF Publication Title:
Text from PDF Page: 076

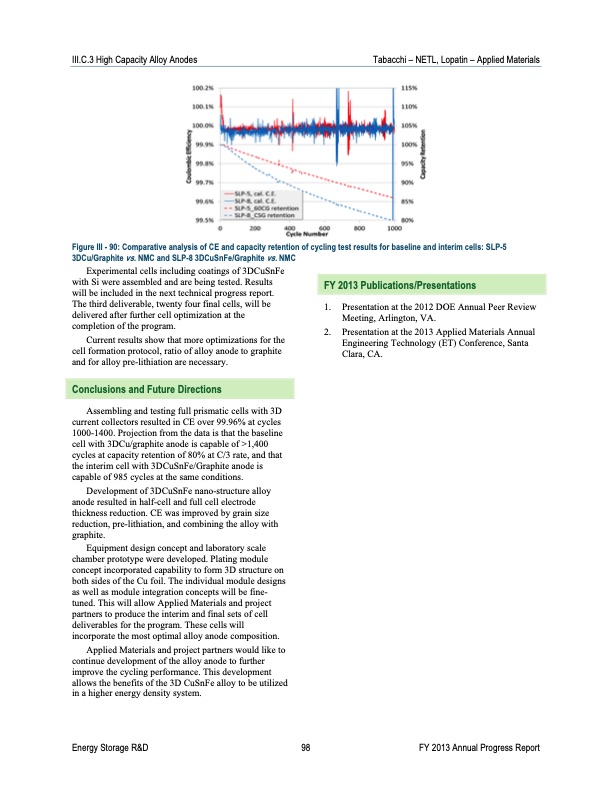

III.C.3 High Capacity Alloy Anodes Tabacchi – NETL, Lopatin – Applied Materials Figure III - 90: Comparative analysis of CE and capacity retention of cycling test results for baseline and interim cells: SLP-5 3DCu/Graphite vs. NMC and SLP-8 3DCuSnFe/Graphite vs. NMC Experimental cells including coatings of 3DCuSnFe with Si were assembled and are being tested. Results will be included in the next technical progress report. The third deliverable, twenty four final cells, will be delivered after further cell optimization at the completion of the program. Current results show that more optimizations for the cell formation protocol, ratio of alloy anode to graphite and for alloy pre-lithiation are necessary. Conclusions and Future Directions Assembling and testing full prismatic cells with 3D current collectors resulted in CE over 99.96% at cycles 1000-1400. Projection from the data is that the baseline cell with 3DCu/graphite anode is capable of >1,400 cycles at capacity retention of 80% at C/3 rate, and that the interim cell with 3DCuSnFe/Graphite anode is capable of 985 cycles at the same conditions. Development of 3DCuSnFe nano-structure alloy anode resulted in half-cell and full cell electrode thickness reduction. CE was improved by grain size reduction, pre-lithiation, and combining the alloy with graphite. Equipment design concept and laboratory scale chamber prototype were developed. Plating module concept incorporated capability to form 3D structure on both sides of the Cu foil. The individual module designs as well as module integration concepts will be fine- tuned. This will allow Applied Materials and project partners to produce the interim and final sets of cell deliverables for the program. These cells will incorporate the most optimal alloy anode composition. Applied Materials and project partners would like to continue development of the alloy anode to further improve the cycling performance. This development allows the benefits of the 3D CuSnFe alloy to be utilized in a higher energy density system. FY 2013 Publications/Presentations 1. 2. Presentation at the 2012 DOE Annual Peer Review Meeting, Arlington, VA. Presentation at the 2013 Applied Materials Annual Engineering Technology (ET) Conference, Santa Clara, CA. Energy Storage R&D 98 FY 2013 Annual Progress ReportPDF Image | Advanced Battery Development
