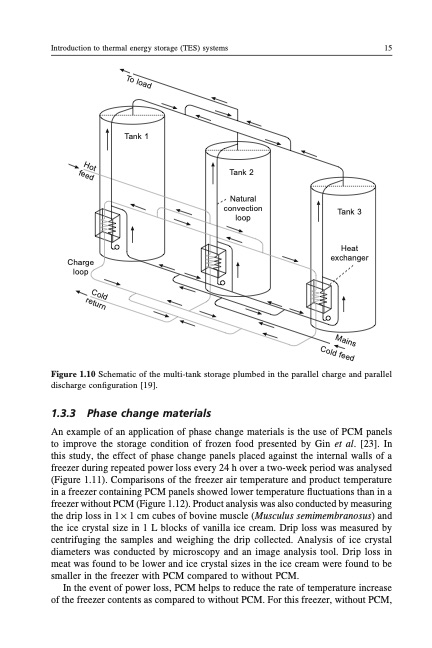

Introduction to thermal energy storage (TES) systems 15 Tank 1 Tank 2 Natural convection loop Tank 3 Heat exchanger Charge loop Figure 1.10 Schematic of the multi-tank storage plumbed in the parallel charge and parallel discharge configuration [19]. 1.3.3 Phase change materials An example of an application of phase change materials is the use of PCM panels to improve the storage condition of frozen food presented by Gin et al. [23]. In this study, the effect of phase change panels placed against the internal walls of a freezer during repeated power loss every 24 h over a two-week period was analysed (Figure 1.11). Comparisons of the freezer air temperature and product temperature in a freezer containing PCM panels showed lower temperature fluctuations than in a freezer without PCM (Figure 1.12). Product analysis was also conducted by measuring the drip loss in 1 ¥ 1 cm cubes of bovine muscle (Musculus semimembranosus) and the ice crystal size in 1 L blocks of vanilla ice cream. Drip loss was measured by centrifuging the samples and weighing the drip collected. Analysis of ice crystal diameters was conducted by microscopy and an image analysis tool. Drip loss in meat was found to be lower and ice crystal sizes in the ice cream were found to be smaller in the freezer with PCM compared to without PCM. In the event of power loss, PCM helps to reduce the rate of temperature increase of the freezer contents as compared to without PCM. For this freezer, without PCM, To load Hot feed Cold return Mains Cold feedPDF Image | Introduction to thermal energy storage TES systems
