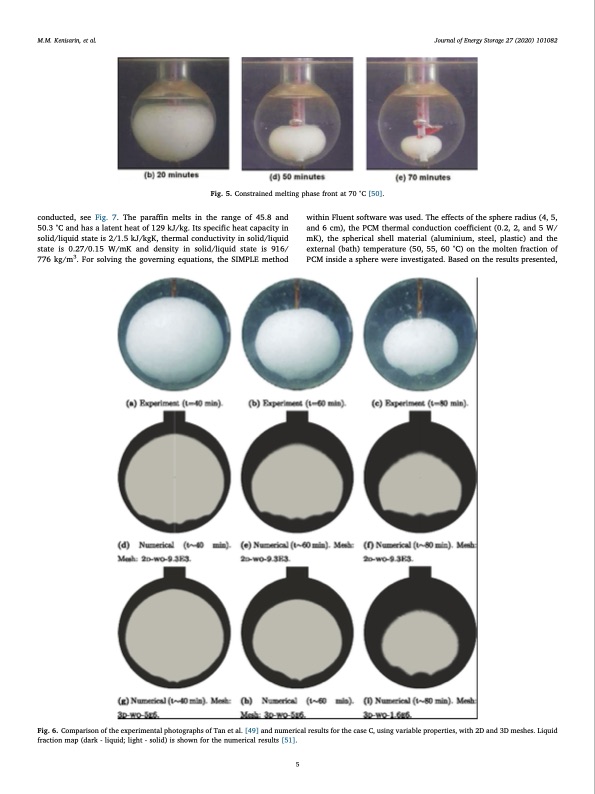

M.M. Kenisarin, et al. Journal of Energy Storage 27 (2020) 101082 conducted, see Fig. 7. The paraffin melts in the range of 45.8 and 50.3 °C and has a latent heat of 129 kJ/kg. Its specific heat capacity in solid/liquid state is 2/1.5 kJ/kgK, thermal conductivity in solid/liquid state is 0.27/0.15 W/mK and density in solid/liquid state is 916/ 776 kg/m3. For solving the governing equations, the SIMPLE method within Fluent software was used. The effects of the sphere radius (4, 5, and 6 cm), the PCM thermal conduction coefficient (0.2, 2, and 5 W/ mK), the spherical shell material (aluminium, steel, plastic) and the external (bath) temperature (50, 55, 60 °C) on the molten fraction of PCM inside a sphere were investigated. Based on the results presented, Fig. 5. Constrained melting phase front at 70 °C [50]. Fig. 6. Comparison of the experimental photographs of Tan et al. [49] and numerical results for the case C, using variable properties, with 2D and 3D meshes. Liquid fraction map (dark - liquid; light - solid) is shown for the numerical results [51]. 5PDF Image | Journal of Energy Storage 27
