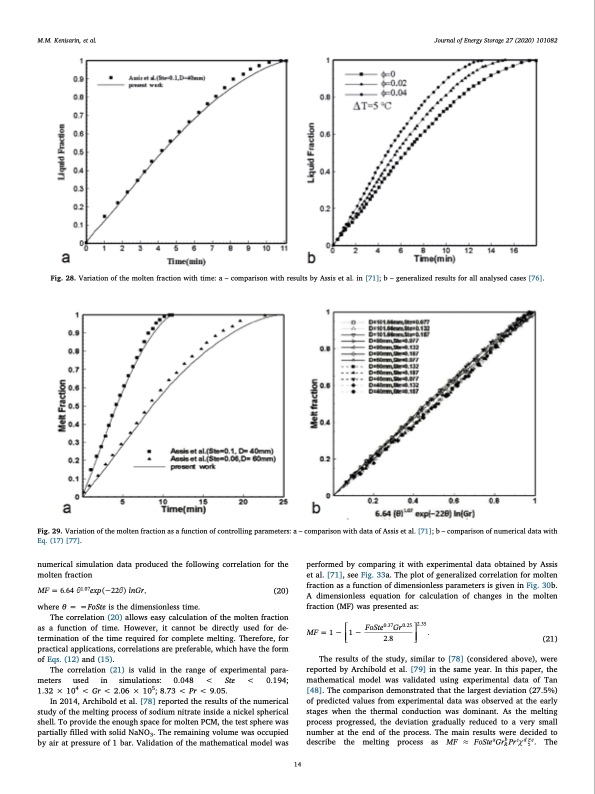

M.M. Kenisarin, et al. Journal of Energy Storage 27 (2020) 101082 Fig. 28. Variation of the molten fraction with time: a – comparison with results by Assis et al. in [71]; b – generalized results for all analysed cases [76]. Fig. 29. Variation of the molten fraction as a function of controlling parameters: a – comparison with data of Assis et al. [71]; b – comparison of numerical data with Eq. (17) [77]. numerical simulation data produced the following correlation for the molten fraction MF = 6.64 1.07exp( 22 ) lnGr, (20) where θ = =FoSte is the dimensionless time. The correlation (20) allows easy calculation of the molten fraction as a function of time. However, it cannot be directly used for de- termination of the time required for complete melting. Therefore, for practical applications, correlations are preferable, which have the form of Eqs. (12) and (15). The correlation (21) is valid in the range of experimental para- meters used in simulations: 0.048 < Ste < 0.194; 1.32×104PDF Image | Journal of Energy Storage 27
