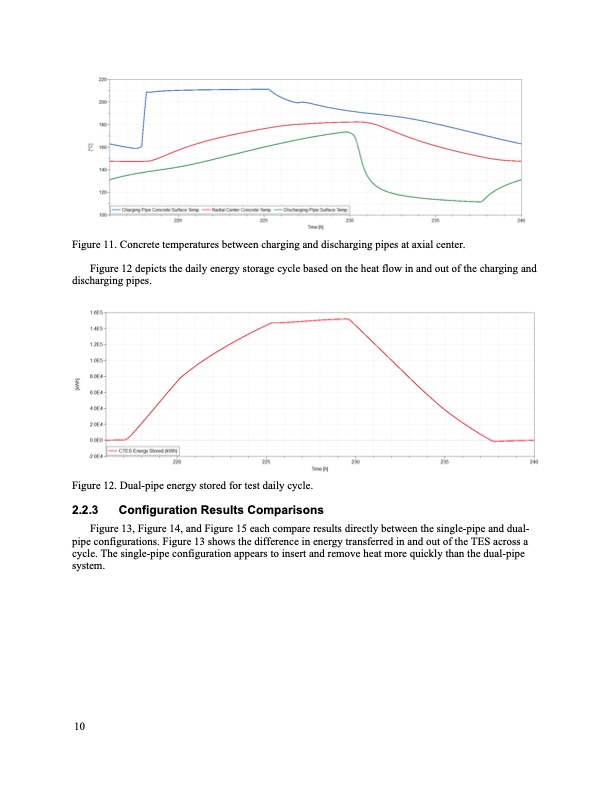

Figure 11. Concrete temperatures between charging and discharging pipes at axial center. Figure 12 depicts the daily energy storage cycle based on the heat flow in and out of the charging and discharging pipes. Figure 12. Dual-pipe energy stored for test daily cycle. 2.2.3 Configuration Results Comparisons Figure 13, Figure 14, and Figure 15 each compare results directly between the single-pipe and dual- pipe configurations. Figure 13 shows the difference in energy transferred in and out of the TES across a cycle. The single-pipe configuration appears to insert and remove heat more quickly than the dual-pipe system. 10PDF Image | Thermal Energy Storage Model Development
