Text from PDF Page: 023

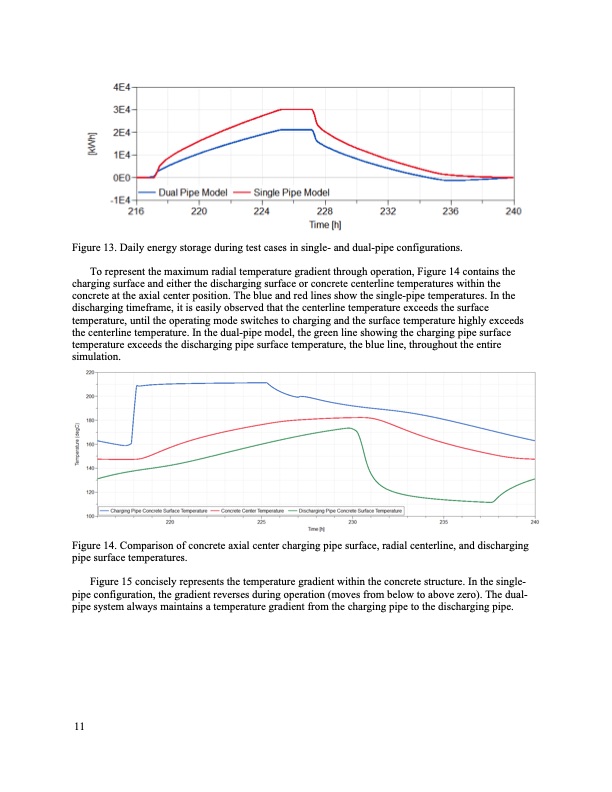

Figure 13. Daily energy storage during test cases in single- and dual-pipe configurations. To represent the maximum radial temperature gradient through operation, Figure 14 contains the charging surface and either the discharging surface or concrete centerline temperatures within the concrete at the axial center position. The blue and red lines show the single-pipe temperatures. In the discharging timeframe, it is easily observed that the centerline temperature exceeds the surface temperature, until the operating mode switches to charging and the surface temperature highly exceeds the centerline temperature. In the dual-pipe model, the green line showing the charging pipe surface temperature exceeds the discharging pipe surface temperature, the blue line, throughout the entire simulation. Figure 14. Comparison of concrete axial center charging pipe surface, radial centerline, and discharging pipe surface temperatures. Figure 15 concisely represents the temperature gradient within the concrete structure. In the single- pipe configuration, the gradient reverses during operation (moves from below to above zero). The dual- pipe system always maintains a temperature gradient from the charging pipe to the discharging pipe. 11PDF Image | Thermal Energy Storage Model Development
