PDF Publication Title:
Text from PDF Page: 081

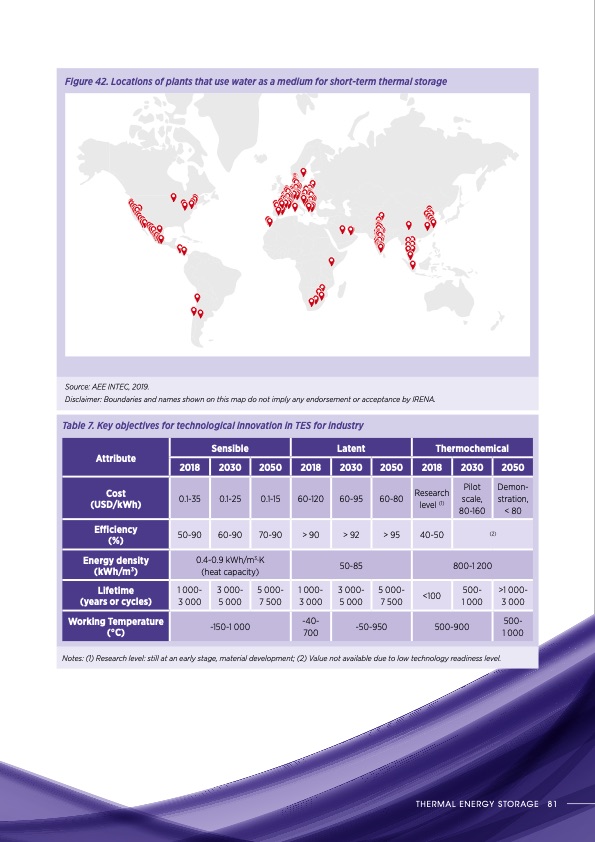

Figure 42. Locations of plants that use water as a medium for short-term thermal storage Source: AEE INTEC, 2019. Disclaimer: Boundaries and names shown on this map do not imply any endorsement or acceptance by IRENA. Table 7. Key objectives for technological innovation in TES for industry Attribute Sensible Latent Thermochemical 2018 2030 2050 2018 2030 2050 2018 2030 2050 Cost (USD/kWh) 0.1-35 0.1-25 0.1-15 60-120 60-95 60-80 Research level (1) Pilot scale, 80-160 Demon- stration, < 80 Efficiency (%) 50-90 60-90 70-90 > 90 > 92 > 95 40-50 (2) Energy density (kWh/m3) 0.4-0.9 kWh/m3·K (heat capacity) 50-85 800-1 200 Lifetime (years or cycles) 1 000- 3 000 3 000- 5 000 5 000- 7 500 1 000- 3 000 3 000- 5 000 5 000- 7 500 <100 500- 1 000 >1 000- 3 000 Working Temperature (°C) -150-1 000 -40- 700 -50-950 500-900 500- 1 000 Notes: (1) Research level: still at an early stage, material development; (2) Value not available due to low technology readiness level. THERMAL ENERGY STORAGE 81PDF Image | THERMAL ENERGY STORAGE Outlook
PDF Search Title:
THERMAL ENERGY STORAGE OutlookOriginal File Name Searched:
IRENA_Innovation_Outlook_TES_2020.pdfDIY PDF Search: Google It | Yahoo | Bing
