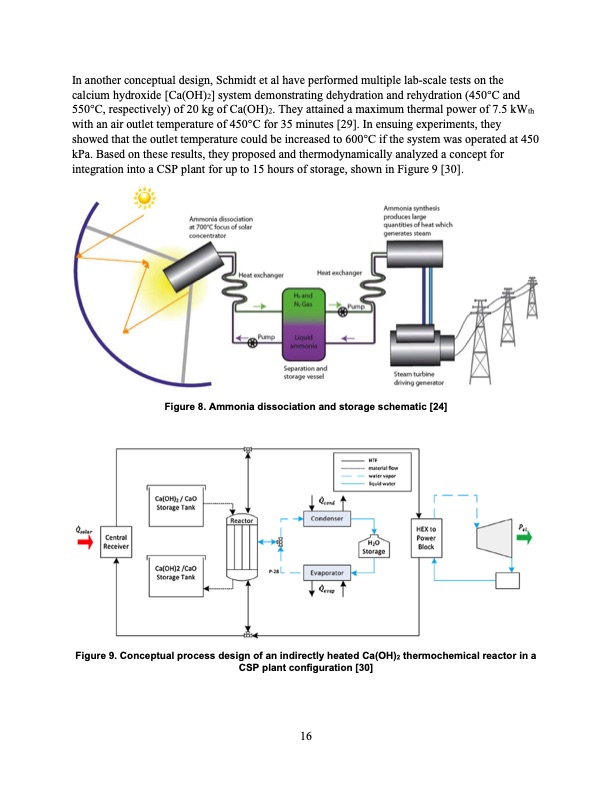

In another conceptual design, Schmidt et al have performed multiple lab-scale tests on the calcium hydroxide [Ca(OH)2] system demonstrating dehydration and rehydration (450°C and 550°C, respectively) of 20 kg of Ca(OH)2. They attained a maximum thermal power of 7.5 kWth with an air outlet temperature of 450°C for 35 minutes [29]. In ensuing experiments, they showed that the outlet temperature could be increased to 600°C if the system was operated at 450 kPa. Based on these results, they proposed and thermodynamically analyzed a concept for integration into a CSP plant for up to 15 hours of storage, shown in Figure 9 [30]. Figure 8. Ammonia dissociation and storage schematic [24] Figure 9. Conceptual process design of an indirectly heated Ca(OH)2 thermochemical reactor in a CSP plant configuration [30] 16PDF Image | Thermal Energy Storage Technologies
