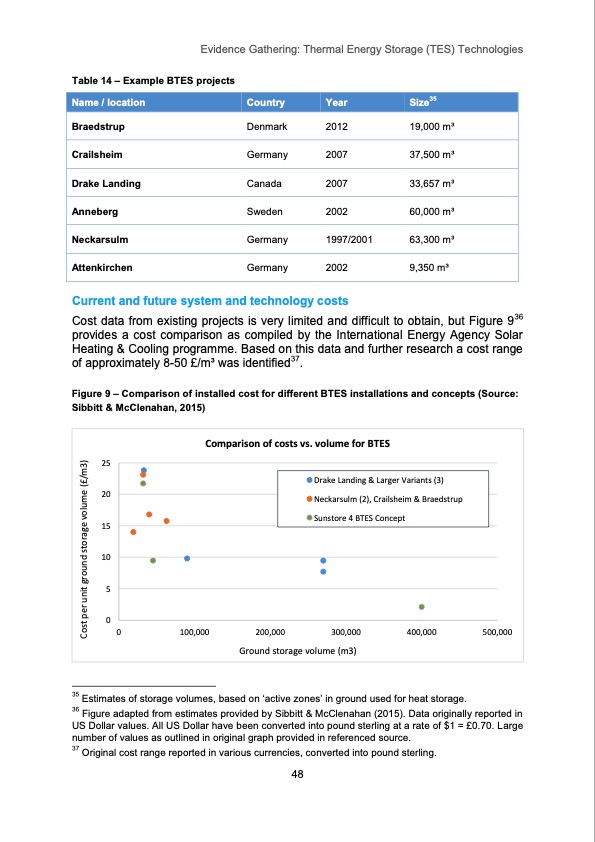

Table 14 – Example BTES projects Evidence Gathering: Thermal Energy Storage (TES) Technologies Name / location Country Year Size35 Braedstrup Crailsheim Drake Landing Anneberg Neckarsulm Attenkirchen Denmark 2012 Germany 2007 Canada 2007 Sweden 2002 Germany 1997/2001 Germany 2002 19,000 m3 37,500 m3 33,657 m3 60,000 m3 63,300 m3 9,350 m3 Current and future system and technology costs Cost data from existing projects is very limited and difficult to obtain, but Figure 936 provides a cost comparison as compiled by the International Energy Agency Solar Heating & Cooling programme. Based on this data and further research a cost range of approximately 8-50 £/m3 was identified37. Figure 9 – Comparison of installed cost for different BTES installations and concepts (Source: Sibbitt & McClenahan, 2015) 25 20 15 10 5 0 Comparison of costs vs. volume for BTES 0 100,000 200,000 Ground storage volume (m3) 500,000 Drake Landing & Larger Variants (3) Neckarsulm (2), Crailsheim & Braedstrup Sunstore 4 BTES Concept 300,000 400,000 35 Estimates of storage volumes, based on ‘active zones’ in ground used for heat storage. 36 Figure adapted from estimates provided by Sibbitt & McClenahan (2015). Data originally reported in US Dollar values. All US Dollar have been converted into pound sterling at a rate of $1 = £0.70. Large number of values as outlined in original graph provided in referenced source. 37 Original cost range reported in various currencies, converted into pound sterling. 48 Cost per unit ground storage volume (£/m3)PDF Image | Thermal Energy Storage (TES) Technologies
