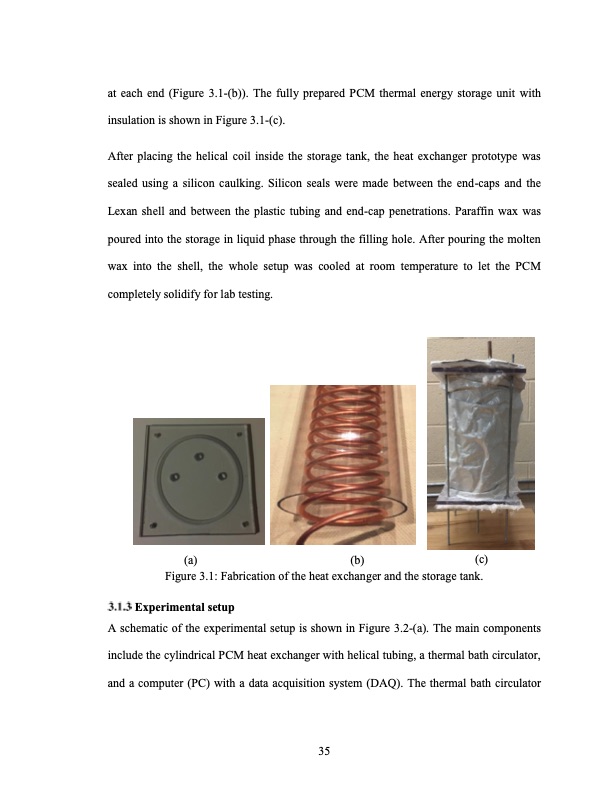

at each end (Figure 3.1-(b)). The fully prepared PCM thermal energy storage unit with insulation is shown in Figure 3.1-(c). After placing the helical coil inside the storage tank, the heat exchanger prototype was sealed using a silicon caulking. Silicon seals were made between the end-caps and the Lexan shell and between the plastic tubing and end-cap penetrations. Paraffin wax was poured into the storage in liquid phase through the filling hole. After pouring the molten wax into the shell, the whole setup was cooled at room temperature to let the PCM completely solidify for lab testing. (c) Figure 3.1: Fabrication of the heat exchanger and the storage tank. Experimental setup A schematic of the experimental setup is shown in Figure 3.2-(a). The main components include the cylindrical PCM heat exchanger with helical tubing, a thermal bath circulator, and a computer (PC) with a data acquisition system (DAQ). The thermal bath circulator (a) (b) 35PDF Image | THERMAL ENERGY STORAGE USING PARAFFIN WAX
