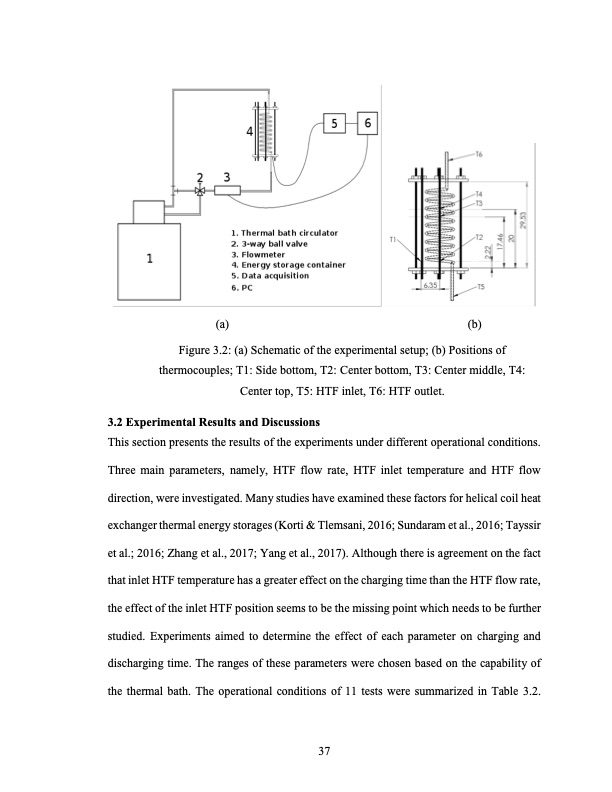

(a) (b) Figure 3.2: (a) Schematic of the experimental setup; (b) Positions of thermocouples; T1: Side bottom, T2: Center bottom, T3: Center middle, T4: Center top, T5: HTF inlet, T6: HTF outlet. 3.2 Experimental Results and Discussions This section presents the results of the experiments under different operational conditions. Three main parameters, namely, HTF flow rate, HTF inlet temperature and HTF flow direction, were investigated. Many studies have examined these factors for helical coil heat exchanger thermal energy storages (Korti & Tlemsani, 2016; Sundaram et al., 2016; Tayssir et al.; 2016; Zhang et al., 2017; Yang et al., 2017). Although there is agreement on the fact that inlet HTF temperature has a greater effect on the charging time than the HTF flow rate, the effect of the inlet HTF position seems to be the missing point which needs to be further studied. Experiments aimed to determine the effect of each parameter on charging and discharging time. The ranges of these parameters were chosen based on the capability of the thermal bath. The operational conditions of 11 tests were summarized in Table 3.2. 37PDF Image | THERMAL ENERGY STORAGE USING PARAFFIN WAX
