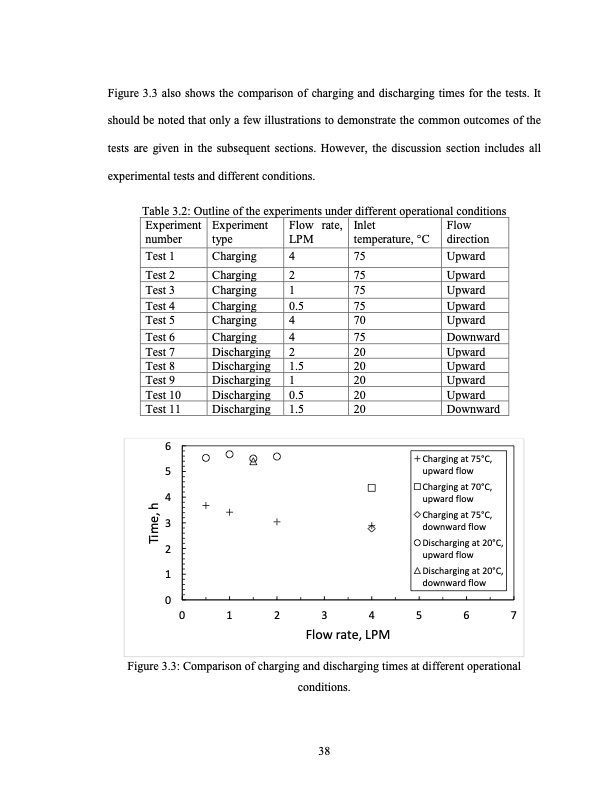

Figure 3.3 also shows the comparison of charging and discharging times for the tests. It should be noted that only a few illustrations to demonstrate the common outcomes of the tests are given in the subsequent sections. However, the discussion section includes all experimental tests and different conditions. Table 3.2: Outline of the experiments under different operational conditions Experiment number Test 1 Test 2 Test 3 Test 4 Test 5 Test 6 Test 7 Test 8 Test 9 Test 10 Test 11 Experiment type Charging Charging Charging Charging Charging Charging Discharging Discharging Discharging Discharging Discharging Flow rate, LPM 4 2 1 0.5 4 4 2 1.5 1 0.5 1.5 Inlet temperature, °C 75 75 75 75 70 75 20 20 20 20 20 Flow direction Upward Upward Upward Upward Upward Downward Upward Upward Upward Upward Downward 6 5 4 3 2 1 0 Charging at 75°C, upward flow Charging at 70°C, upward flow Charging at 75°C, downward flow Discharging at 20°C, upward flow Discharging at 20°C, downward flow 01234567 Flow rate, LPM Figure 3.3: Comparison of charging and discharging times at different operational conditions. 38 Time, hPDF Image | THERMAL ENERGY STORAGE USING PARAFFIN WAX
