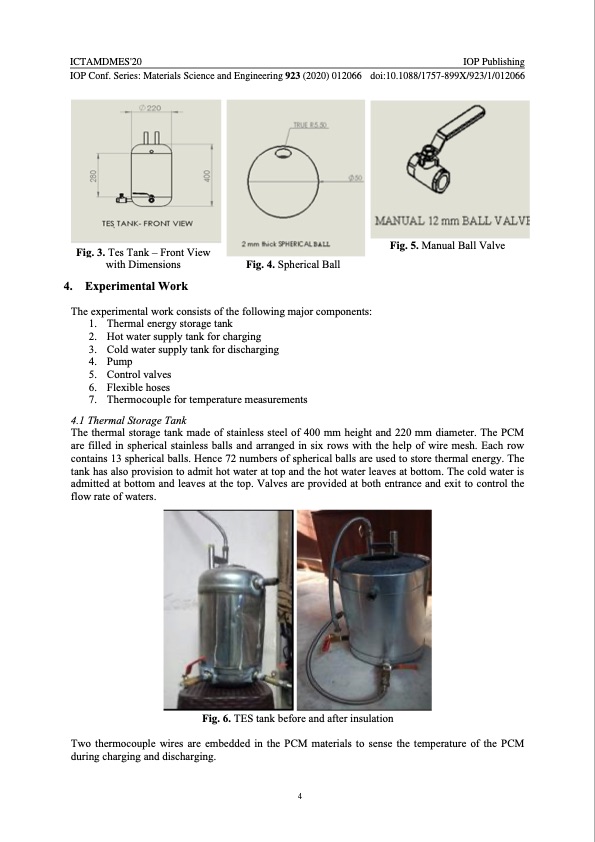

ICTAMDMES'20 IOP Publishing IOP Conf. Series: Materials Science and Engineering 923 (2020) 012066 doi:10.1088/1757-899X/923/1/012066 Fig. 3. Tes Tank – Front View with Dimensions Fig. 4. Spherical Ball Fig. 5. Manual Ball Valve 4. Experimental Work The experimental work consists of the following major components: 1. Thermal energy storage tank 2. Hot water supply tank for charging 3. Cold water supply tank for discharging 4. Pump 5. Control valves 6. Flexible hoses 7. Thermocouple for temperature measurements 4.1 Thermal Storage Tank The thermal storage tank made of stainless steel of 400 mm height and 220 mm diameter. The PCM are filled in spherical stainless balls and arranged in six rows with the help of wire mesh. Each row contains 13 spherical balls. Hence 72 numbers of spherical balls are used to store thermal energy. The tank has also provision to admit hot water at top and the hot water leaves at bottom. The cold water is admitted at bottom and leaves at the top. Valves are provided at both entrance and exit to control the flow rate of waters. Fig. 6. TES tank before and after insulation Two thermocouple wires are embedded in the PCM materials to sense the temperature of the PCM during charging and discharging. 4PDF Image | Thermal Energy Storage using Paraffin Wax Phase Change Materials
