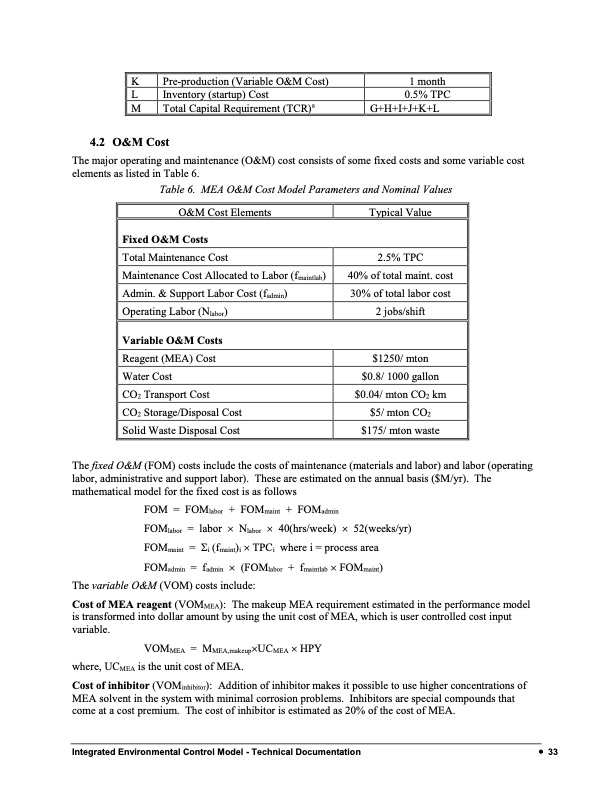

K Pre-production (Variable O&M Cost) L Inventory (startup) Cost M Total Capital Requirement (TCR)a 4.2 O&M Cost 1 month 0.5% TPC G+H+I+J+K+L The major operating and maintenance (O&M) cost consists of some fixed costs and some variable cost elements as listed in Table 6. Table 6. MEA O&M Cost Model Parameters and Nominal Values O&M Cost Elements Fixed O&M Costs Total Maintenance Cost Maintenance Cost Allocated to Labor (fmaintlab) Admin. & Support Labor Cost (fadmin) Operating Labor (Nlabor) Variable O&M Costs Reagent (MEA) Cost Water Cost CO2 Transport Cost CO2 Storage/Disposal Cost Solid Waste Disposal Cost Typical Value 2.5% TPC 40% of total maint. cost 30% of total labor cost 2 jobs/shift $1250/ mton $0.8/ 1000 gallon $0.04/ mton CO2 km $5/ mton CO2 $175/ mton waste The fixed O&M (FOM) costs include the costs of maintenance (materials and labor) and labor (operating labor, administrative and support labor). These are estimated on the annual basis ($M/yr). The mathematical model for the fixed cost is as follows FOM = FOMlabor + FOMmaint + FOMadmin FOMlabor = labor Nlabor 40(hrs/week) 52(weeks/yr) FOMmaint = i (fmaint)i TPCi where i = process area FOMadmin = fadmin (FOMlabor + fmaintlab FOMmaint) The variable O&M (VOM) costs include: Cost of MEA reagent (VOMMEA): The makeup MEA requirement estimated in the performance model is transformed into dollar amount by using the unit cost of MEA, which is user controlled cost input variable. VOMMEA = MMEA,makeupUCMEA HPY where, UCMEA is the unit cost of MEA. Cost of inhibitor (VOMinhibitor): Addition of inhibitor makes it possible to use higher concentrations of MEA solvent in the system with minimal corrosion problems. Inhibitors are special compounds that come at a cost premium. The cost of inhibitor is estimated as 20% of the cost of MEA. Integrated Environmental Control Model - Technical Documentation • 33PDF Image | Amine Based CO2 Capture
