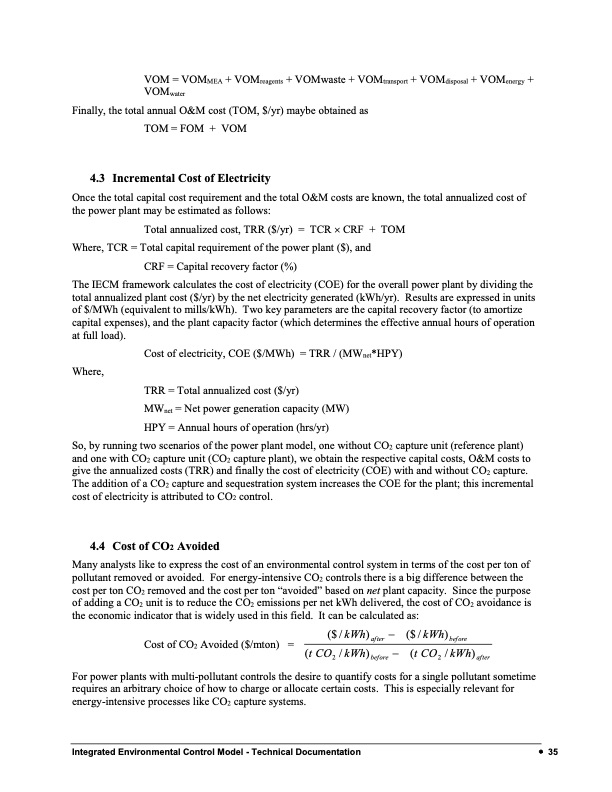

Text from PDF Page: 038
VOM = VOMMEA + VOMreagents + VOMwaste + VOMtransport + VOMdisposal + VOMenergy + VOMwater Finally, the total annual O&M cost (TOM, $/yr) maybe obtained as TOM = FOM + VOM 4.3 Incremental Cost of Electricity Once the total capital cost requirement and the total O&M costs are known, the total annualized cost of the power plant may be estimated as follows: Total annualized cost, TRR ($/yr) = TCR CRF + TOM Where, TCR = Total capital requirement of the power plant ($), and CRF = Capital recovery factor (%) The IECM framework calculates the cost of electricity (COE) for the overall power plant by dividing the total annualized plant cost ($/yr) by the net electricity generated (kWh/yr). Results are expressed in units of $/MWh (equivalent to mills/kWh). Two key parameters are the capital recovery factor (to amortize capital expenses), and the plant capacity factor (which determines the effective annual hours of operation at full load). Where, Cost of electricity, COE ($/MWh) = TRR / (MWnet*HPY) TRR = Total annualized cost ($/yr) MWnet = Net power generation capacity (MW) HPY = Annual hours of operation (hrs/yr) So, by running two scenarios of the power plant model, one without CO2 capture unit (reference plant) and one with CO2 capture unit (CO2 capture plant), we obtain the respective capital costs, O&M costs to give the annualized costs (TRR) and finally the cost of electricity (COE) with and without CO2 capture. The addition of a CO2 capture and sequestration system increases the COE for the plant; this incremental cost of electricity is attributed to CO2 control. 4.4 Cost of CO2 Avoided Many analysts like to express the cost of an environmental control system in terms of the cost per ton of pollutant removed or avoided. For energy-intensive CO2 controls there is a big difference between the cost per ton CO2 removed and the cost per ton “avoided” based on net plant capacity. Since the purpose of adding a CO2 unit is to reduce the CO2 emissions per net kWh delivered, the cost of CO2 avoidance is the economic indicator that is widely used in this field. It can be calculated as: Cost of CO2 Avoided ($/mton) = ($ / kWh)after − ($ / kWh)before (t CO2 / kWh)before − (t CO2 / kWh)after For power plants with multi-pollutant controls the desire to quantify costs for a single pollutant sometime requires an arbitrary choice of how to charge or allocate certain costs. This is especially relevant for energy-intensive processes like CO2 capture systems. Integrated Environmental Control Model - Technical Documentation • 35PDF Image | Amine Based CO2 Capture
