PDF Publication Title:
Text from PDF Page: 050

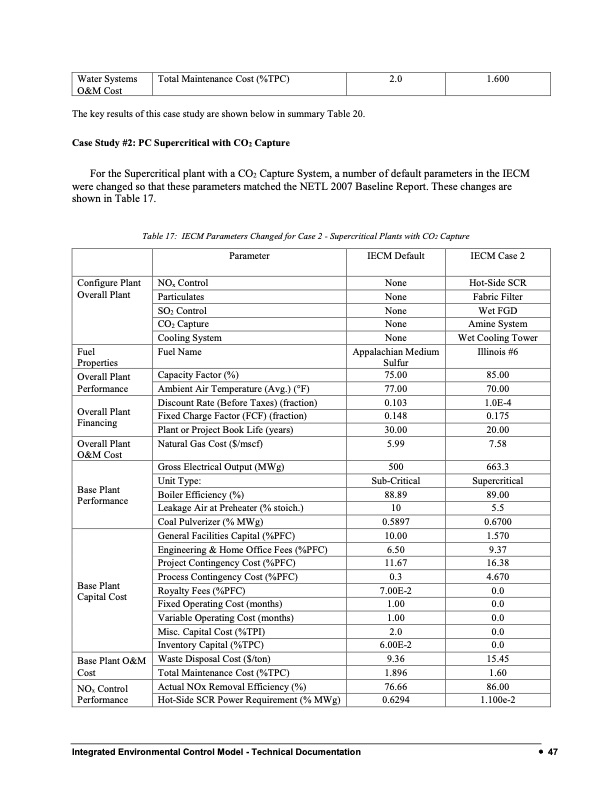

Water Systems Total Maintenance Cost (%TPC) 2.0 1.600 O&M Cost The key results of this case study are shown below in summary Table 20. Case Study #2: PC Supercritical with CO2 Capture For the Supercritical plant with a CO2 Capture System, a number of default parameters in the IECM were changed so that these parameters matched the NETL 2007 Baseline Report. These changes are shown in Table 17. Table 17: IECM Parameters Changed for Case 2 - Supercritical Plants with CO2 Capture Configure Plant Overall Plant Fuel Properties Overall Plant Performance Overall Plant Financing Overall Plant O&M Cost Base Plant Performance Base Plant Capital Cost Base Plant O&M Cost NOx Control Performance Parameter Capacity Factor (%) Ambient Air Temperature (Avg.) (°F) Discount Rate (Before Taxes) (fraction) Fixed Charge Factor (FCF) (fraction) Plant or Project Book Life (years) Natural Gas Cost ($/mscf) Gross Electrical Output (MWg) Unit Type: Boiler Efficiency (%) Leakage Air at Preheater (% stoich.) Coal Pulverizer (% MWg) General Facilities Capital (%PFC) Engineering & Home Office Fees (%PFC) Project Contingency Cost (%PFC) Process Contingency Cost (%PFC) Royalty Fees (%PFC) Fixed Operating Cost (months) Variable Operating Cost (months) Misc. Capital Cost (%TPI) Inventory Capital (%TPC) Waste Disposal Cost ($/ton) Total Maintenance Cost (%TPC) Actual NOx Removal Efficiency (%) Hot-Side SCR Power Requirement (% MWg) IECM Default None None None None None Appalachian Medium Sulfur 75.00 77.00 0.103 0.148 30.00 5.99 500 Sub-Critical 88.89 10 0.5897 10.00 6.50 11.67 0.3 7.00E-2 1.00 1.00 2.0 6.00E-2 9.36 1.896 76.66 0.6294 IECM Case 2 Hot-Side SCR Fabric Filter Wet FGD Amine System Wet Cooling Tower Illinois #6 85.00 70.00 1.0E-4 0.175 20.00 7.58 663.3 Supercritical 89.00 5.5 0.6700 1.570 9.37 16.38 4.670 0.0 0.0 0.0 0.0 0.0 15.45 1.60 86.00 1.100e-2 NOx Control Particulates SO2 Control CO2 Capture Cooling System Fuel Name Integrated Environmental Control Model - Technical Documentation • 47PDF Image | Amine Based CO2 Capture
PDF Search Title:
Amine Based CO2 CaptureOriginal File Name Searched:
2019Jan_IECM-Amine-based-CO2-Capture.pdfDIY PDF Search: Google It | Yahoo | Bing
